500 Liters SS316L Well Water Desalination Machine RO Water Treatment Plant Purification System

500 Liters SS316L Well Water Desalination Machine RO Water Treatment Plant Purification System
500 Liters SS316L Well Water Desalination Machine RO Water Treatment Plant Purification System 500 Liters SS316L Well Water Desalination Machine RO Water Treatment Plant Purification System 500 Liters SS316L Well Water Desalination Machine RO Water Treatment Plant Purification System 500 Liters SS316L Well Water Desalination Machine RO Water Treatment Plant Purification System

Large Image :  500 Liters SS316L Well Water Desalination Machine RO Water Treatment Plant Purification System

Product Details:
Place of Origin: China
Brand Name: CHUNKE
Certification: CE,ISO
Model Number: CK-2000L
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: wooden box package
Delivery Time: 15-30 working days
Payment Terms: TT
Supply Ability: 20 units per month
Detailed Product Description
Material: SUS316 Automatic Grade: Full Automatic
After-sales Service Provided: Online Support,Field Installation, Commissioning And Training Application: Purification
Control: Automatic/ Manual Certification: ISO9001,RoHS,SASO,CE
Warranty: 1 Year Flow Rate: 0.5m³ Per Hour
High Light:

reverse osmosis water treatment plant

,

industrial ro plant

500 Liter RO Water Treatment Plant SS316 With Water Softener Purify Equipment



Function of each part of water treatment plant
1.feed water pump pump-- provide the pressure to quartz sand filter/active carbon filter
2.Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4.Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5.Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6.High pressure pump-- Provide the high pressure to RO membrane
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8.UV sterilizer or ozone generator--- kill bacteria





Flow chat

raw water→ 1 feed water pump→ 2 sand(multi-medium) filter→3 active carbon filter→4 softener (optional)→ 5 security(micron) filter→6 high pressure pump→7 reverse osmosis system→ 8 pure water storage tank 9 UV sterilizer (ozone generator)

500 Liter Underground water treatment system advantage



1.System can produce water continuously and high degree automation.

2.No need chemical to regenerate, easy operation and maintenance.

3.Core components of ro system are imported USA membranes.

4.Automatic switch on when low water level, and switch off when high water level

5.System flushes RO membranes automatically, reducing membranes polluted speed.

6.Water shortage protection for multi-stage pump

7.Product water conductivity meter can monitor water quality online continuously.

8.Low operation cost and long life span



Customized Capacity



Model

Productivity

(T/H)

Motor power

(KW)

Recovery rate

(%)

Outlet water conductivity

(μS/CM)

Raw water conductivity

(μS/CM)

CK-RO-500L 0.5 1.5 50 ≤10 ≤300
CK-RO-1000L 1 2.2 50 ≤10 ≤300
CK-RO-2000L 2 3 50-60 ≤10 ≤300
CK-RO-3000L 3 4.5 55-65 ≤10 ≤300
CK-RO-4000L 4 6.5 55-65 ≤10 ≤300
CK-RO-5000L 5 8 60-70 ≤10 ≤300
CK-RO-10000L 10 15 60-70 ≤10 ≤300
CK-RO-20000L 20 22 65-75 ≤10 ≤300
CK-RO-30000L 30 26 70-75 ≤10 ≤300
CK-RO-50000L 50 55 70-75 ≤10 ≤300





Application:

1). Electronic industry: Pre-filter for ultra pure water, chemical products and pure water

2). Food and beverage industry: filter for mineral water, wines and fruit juice
3). Medicine industry: filter for drug liquid, gases
4). Chemical industry: filter for organic solvent
5). Petroleum industry: filter for oil-field flooding



Why is Reverse Osmosis a Good Water Filtration Option?
We've been in the water filtration business since 2000 and have found Reverse Osmosis filtration to

consistently be one of the best ways to achieve superior water for the home and business.

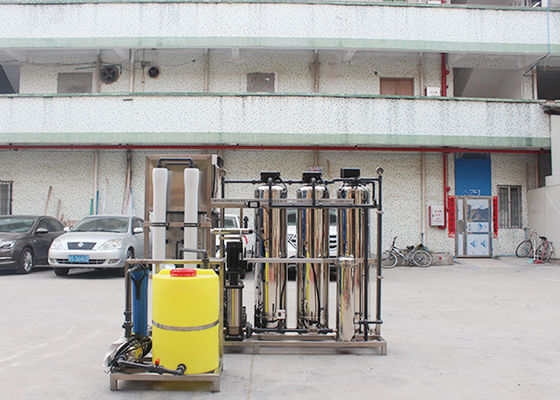

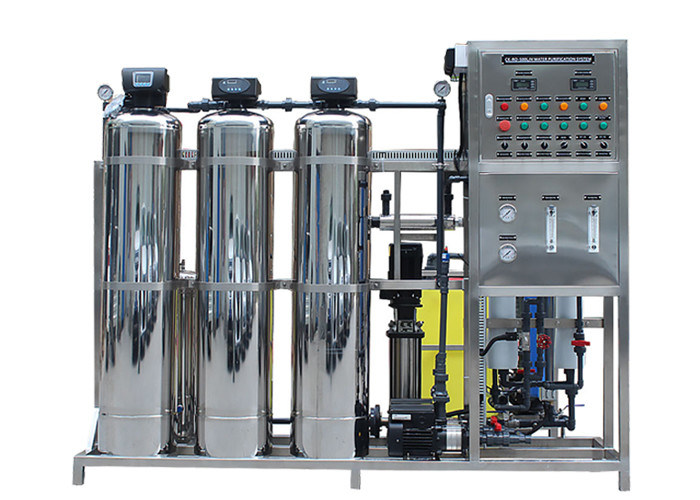

500 Liter per hour RO water treatment plant Front View

500 Liters SS316L Well Water Desalination Machine RO Water Treatment Plant Purification System 0



500 Liters SS316L Well Water Desalination Machine RO Water Treatment Plant Purification System 1

500 Liters SS316L Well Water Desalination Machine RO Water Treatment Plant Purification System 2

500 Liters SS316L Well Water Desalination Machine RO Water Treatment Plant Purification System 3
