Blue FRP RO Plant Reverse Osmosis Water Softener Ion Exchange System

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Blue FRP RO Plant Reverse Osmosis Water Softener Ion Exchange System

Product Details:
Place of Origin: Guangzhou,China
Brand Name: Chunke
Certification: CE,ISO
Model Number: CK-WS
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 2000-5000 1 unit
Packaging Details: In wooden case or protection warp carton.
Delivery Time: 7-15 working days
Supply Ability: 1000 unit per month
Detailed Product Description
Item: Blue FRP Reverse Osmosis Water Softener Ion Exchange System For RO Plant Brand Name: Chunke
Style: Ion Exchange System Application: Drinking
Capacity: Make To Order Certification: CE/ISO
Material: SUS304/316 Or FRP Power Supply: 220 / 380V
Flow Rate, T/H: Make To Order Customized: Ok
High Light:

ro water softener

,

water softener and ro system

Blue FRP Reverse Osmosis Water Softener Ion Exchange System For RO Plant​





An ion exchange system consists of a tank containing small beads of synthetic resin. The beads are treated to selectively adsorb either cations(positive) or anions(negative) and exchange certain ions based on their relative activity compared to the resin. This process of ion exchange will continue until all available exchange sites are filled, at which point the resin is exhausted and must be regenerated by suitable chemicals.



Ion Exchange Water Softening

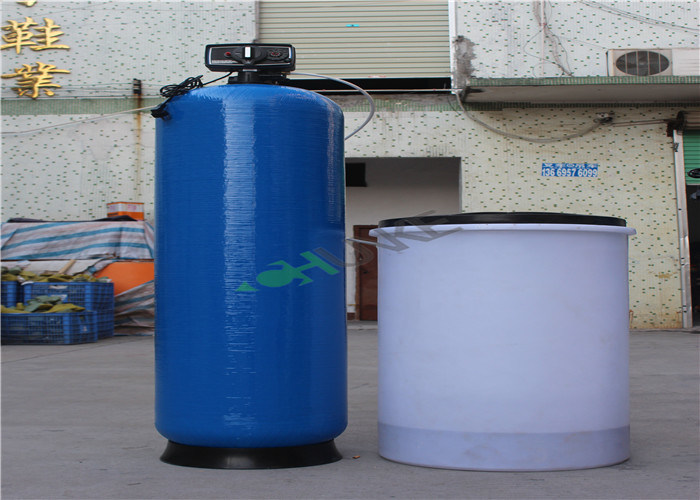

The ion exchange water softener is one of the most common tools of water treatment. Its function is to remove scale-forming calcium and magnesium ions from hard water. In many cases soluble iron (ferrous) can also be removed with softeners. A standard water softener has four major components: a resin tank, resin, a brine tank and a valve or controller.

The softener resin tank contains the treated ion exchange resin - small beads of polystyrene. The resin beads initially adsorb sodium ions during regeneration. The resin has a greater affinity for multi-valent ions such as calcium and magnesium than it does for sodium. Thus, when the hard water containing the Calcium and Magnesium Ions is passed through the resin bed, the calcium and magnesium ions adhere to the resin, releasing the sodium ions until equilibrium is reached. The water softener has exchanged its sodium ions for the calcium and magnesium ions in the water.







More Water Softener Model:

Model Flow

Control

Part

Tank

Part

Brine

Tank/

Brine

valve

Filler/

Local

cation resins

Pipe

Part

(T/H)

valve

type

Tank

Size

Model Volume
(L)
CK-SF-500L 0.5T 5600 844 25L 25 ¾"
CK-SF-1000L 1T 5600 1054 60L 50 ¾"
CK-SF-2000L 2T 5600 1252 60L 75 G1"
CK-SF-500L 0.5T F65B1 844 25L 25 ¾"
CK-SF-1000L 1T F65B1 1054 60L 50 ¾"
CK-SF-2000L 2T F65B1 1252 60L 75 G1"
CK-SF-3000L 3T F63C1 1465 100L 100 G1"
CK-SF-4000L 4T F63C1 1665 200L 150 G1¼"
CK-SF-5000L 5T F74A1 2072 200L 200 G1¼"
CK-SF-8000L 8T F74A1 2472 300L 325 G1½"
CK-SF-10000L 10T F74A1 3072 500L 500 G1½"
CK-SF-12000L 12T F77A 3072 500L 500 G1½"
CK-SF-15000L 15T F77A 3672 800L 700 G2"
CK-SF-20000L 20T F78A1 4072 800L 800 G2"



Detail Pictures :



Blue FRP RO Plant Reverse Osmosis Water Softener Ion Exchange System 0Blue FRP RO Plant Reverse Osmosis Water Softener Ion Exchange System 1Blue FRP RO Plant Reverse Osmosis Water Softener Ion Exchange System 2
