Water Treatment System Manufacturer Reverse Osmosis Machine 4T / H Bottled Water Equipment
Water Treatment System
Raw water tank-raw water pump-multi-medium filter--active carbon filter –water softner (Sodium Ion Exchanger)-precision filter-RO mainframe(including chemical cleaning device)-ozone generator-finished product water tank

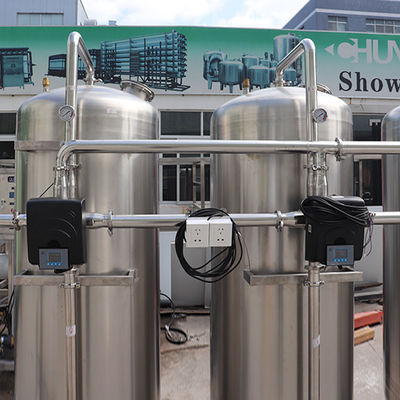

--Silica Sand filter
When the water through the machine, it machine will stop suspend substance through the good quality silica sand. and also protect the following machines and also clean the water this machine can achieve the back washing itself through the manual valve device, and can prolong the life of machine also.
-- Active carbon filter
This Active carbon filter is simple and reliable, easy to maintain. It is suitable for the places which are strict with water quality like enterprises, hotel, army, station and dock. All in all, it is a really good water supply device for both industry and living.
-- Sodium ion exchanger
This machine we also called softner , that Soften theory is Exchanging Na++ of resin itself instead of Ca++Mg++ of water resource with Ion to make water resource soften and become soft water.
The device’s key part is reverse osmosis membranes that is from the America, it has a good performance to eliminate salts and the high pressure pump is from a high quality pump producer in China, it’s easy to handle for its simple structure. The source water, in the case that the conductivity is less than 300us/CM, can reach the national standards totally after treatment by this device, it’s the most ideal equipment for water treatment
UV Sterilizer Machine
The products adopt a high-intensity, long-lived UV germicidal lamp, the device is reasonable, compact, and adopts the structure of secondary disinfection, so health indicators completely according to the state standard.
2)Clarifying and eliminating bacterial for mineral water
3)Water treatment for medicine
4)Separation and refinement of enzyme
5)Concentration and refinement of biologic products
6)Concentration and separation of fruit juice
7)Concentration and refinement of milking
8)Pre-treatment of large water treatment equipment
9)Terminal treatment of ultra-pure water for electronic industry
10)Pouring in water treatment for extremely low permeable wells in oil field
11)Treatment of industrial waste water and reclamation of usable water
||Raw water pump
||provide the pressure to quartz sand filter/active carbon filter/softener.
||get rid of turbidity, suspended matter, organic matter, colloid, etc.
||Active Carbon filter
||Remove the color, smell, free chloride, organic matter, harmful matter, etc.
||exchange "ions" of calcium and magnesium with the most common and easiest method.
||prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
||High pressure pump
||Provide the high pressure to RO membrane.
||main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
