|Application:||Food Industry Use||Control:||Automatic|
|Membrane:||8040 Reverse Osmosis||Function:||Filter|
|Capacity:||3T Per Hour||Material:||FRP+SS304|
|Heat Removal Rate:||≥99.9%||Name:||Pure Water Treatment Equipment|
sea water filtration plant,
seawater to drinking water machine
Factory professional design seawater desalination equipment sea water desalination purification machine
How is sea water desalination system work?
Seawater has high salt content, high hardness, high corrosiveness to equipment, and seasonal changes in water temperature make the reverse osmosis seawater desalination system much more complicated than conventional brackish water desalination system, and the project investment and energy consumption are much higher. . Therefore, through careful process design, reasonable equipment configuration to reduce engineering investment and energy consumption, thereby reducing unit water production costs, and ensuring stable operation of the system is particularly important.
The design of the whole reverse osmosis seawater desalination control system is controlled by advanced computer programs at home and abroad.
The programmable controller PLC of the industrial computer operation station constitutes a distributed sampling control and centralized monitoring operation control system.
According to the process parameters, the high and low voltage protection switch is set, the automatic switching device, when the conductance, flow and pressure are abnormal, automatic switching, automatic interlock alarm and shutdown can be realized to protect the high pressure pump and reverse osmosis membrane components.
The inverter controls the starting and shutting down of the high pressure pump to realize the soft operation of the high pressure pump, saving energy and preventing damage of the high pressure pump and the membrane element due to water hammer or back pressure.
The program design can realize low-pressure automatic flushing before and after the reverse osmosis device is turned on and off.
Especially in the case of shutdown, the metastable state of concentrated seawater will be transformed into precipitation, contaminating the membrane surface, and the low-pressure desalinated water can automatically displace the concentrated seawater to protect it.
The membrane surface is not contaminated and the membrane life is extended.
Relevant parameters such as temperature, flow, water quality, and output of the system can be displayed, stored, counted, tabulated, and printed.
The dynamic process flow picture in the monitoring operation is clear and intuitive, and the system control simplifies the manual operation to ensure that the system can operate automatically, safely and reliably.
Detail of 3000L RO System
|1||Metering Dosing System (Fungicide)||SEKO||1 Set|
|2||Raw water pool 20m3||User supply||1 Pc|
|3||Raw water pump(SZ50-32-160) Fluorine plastic material||CNP||1 Set|
|4||Metering Dosing System (Flocculant)||SEKO||1 Set|
|5||Mechanical filter φ1000×1850MM||CHUNKE||1 Set|
|6||Activated carbon filter φ1000×1850MM||CHUNKE||1 Set|
|7||Metering Dosing System (Scale Inhibitor)||SEKO||1 Set|
|8||Metering Dosing System(PH adjust)||SEKO||1 Set|
|9||Security filter PFP-8P-40||CHUNKE||2 Sets|
|10||Sea water pressure pump APP10.2||Danfoss||1 Set|
|11||Reverse osmosis device water production: 3000L / h, desalination rate: 96 ~ 99%, the system water utilization: 28-35%||1 Set|
|Include||A,Membrane 8040-1 Maerial:FRP 1000PSI||China||3 Pcs|
|B,Membrane SW-8040||DOW||3 Pcs|
|C,A3 carbon steel paint rack / 304 stainless steel||1 Set|
|12||Pressure gauge||China||1 Set|
|14||Wash/Clean water tank 300L||ADWIN||1 Pc|
|15||Rinse / clean the filter PFS-5P-40||CHUNKE||1 Set|
|16||Rinse / clean the pump(CHL8-30)||CNP||1 Set|
|17||Connect pipe fittings, valves||Sanking/Jewelry||1 Set|
|18||Electronic control system||1 Set|
|19||Desalination tank 10-20m3||User supply||1 Pc|

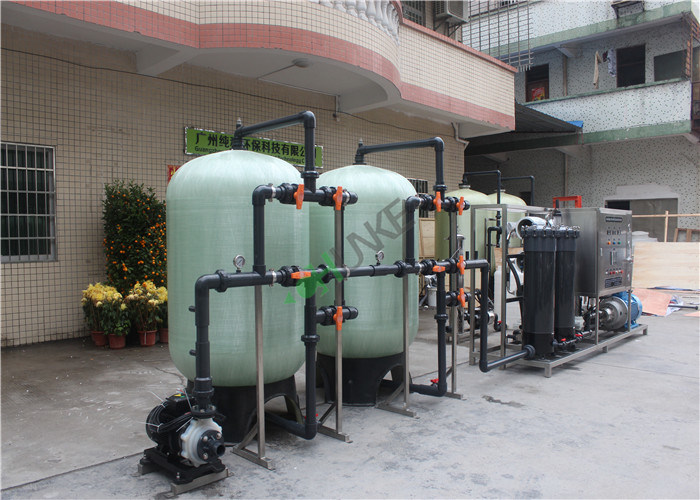

Picture of 3000L seawater desalination equipment:
Back Picture of 3000L seawater desalination equipment:
PLC Control box Picture of Picture of 3000L seawater desalination equipment:
