Industrial RO Water Treatment Plant 6000lph SUS304 Drinking Water Filtration System

China Guangzhou Chunke Environmental Technology Co., Ltd. certification
China Guangzhou Chunke Environmental Technology Co., Ltd. certification
Hi Jessie, The 5T/H RO water plant was running well ! Perfect quality and excellent service ! Thank you so much Hunter ! I will place more order in near future surely !

—— Reid from Australia

We have been doing business with Chunke company for many years with high performance-cost and friendly service , such a honest factory, product are good !

—— Edward from South Africa

Hello cara,I received the water Filter last week.It look SUPER !!! Thanks !!! Thank you my friend !!!

—— Joice from Poland

It's many times buy from here. And always giving professional suggestions, help me a lot in business! Thanks!

—— Fraser from Russia

Good price , good quality and fast delivering .

—— Robert From UK

The brackish water machine is very suitable for my project and I have purchased it for the second time.

—— Hassan from Saudi Arabia

I'm Online Chat Now

Industrial RO Water Treatment Plant 6000lph SUS304 Drinking Water Filtration System

Industrial RO Water Treatment Plant 6000lph SUS304 Drinking Water Filtration System
Industrial RO Water Treatment Plant 6000lph SUS304 Drinking Water Filtration System
video play

Large Image :  Industrial RO Water Treatment Plant 6000lph SUS304 Drinking Water Filtration System

Product Details:
Place of Origin: China
Brand Name: CHUNKE
Certification: CE,ISO
Model Number: CK-8000L
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: wooden box package
Delivery Time: 30 wroking days
Payment Terms: TT
Supply Ability: 1 set per week
Detailed Product Description
Product Name: RO Water Treatment Plant Material: Stainless Steel/Fiber Glass
Warranty: 1 Year Membrane: Vontron/DOW/Toray
Pipe: Stainless Steel/U-PVC Application: Drinking
Type: Reverse Osmosis System Certificate: CE ISO9001
Recovery Rate: 65-75% Desalination Rate: 99%
High Light:

reverse osmosis water treatment plant

,

ro water purifier machine

Industrial 6000lph SUS304 Drinking Water Filtration System RO Water Treatment Plant

RO system is raw water through precision filter, granular activated carbon filters, activated carbon

filters, compression, and then through the pump pressure, the use of reverse osmosis membrane

pore size 1/10000μm make a higher concentration of water into low concentration of water, while

the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed

with a large number of full isolation, to achieve the required physical and chemical indicators for

drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish

water quality. It is key equipment of pure water plant.



Model Productivity
(T/H)
Motor power
(KW)
Recovery rate
(%)
Outlet water conductivity
(μS/CM)
Raw water conductivity
(μS/CM)
CK-RO-500L 0.5 1.5 50 ≤10 ≤300
CK-RO-1000L 1 2.2 50 ≤10 ≤300
CK-RO-2000L 2 3 50-60 ≤10 ≤300
CK-RO-3000L 3 4.5 55-65 ≤10 ≤300
CK-RO-4000L 4 6.5 55-65 ≤10 ≤300
CK-RO-5000L 5 8 60-70 ≤10 ≤300
CK-RO-10000L 10 15 60-70 ≤10 ≤300
CK-RO-20000L 20 22 65-75 ≤10 ≤300
CK-RO-30000L 30 26 70-75 ≤10 ≤300
CK-RO-50000L 50 55 70-75 ≤10

≤300

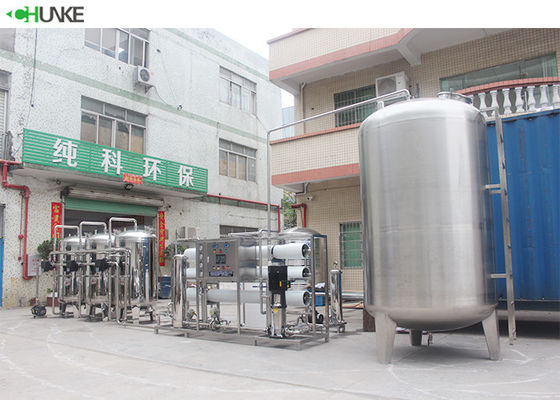

Details of the RO Water Treatment Plant

Industrial RO Water Treatment Plant 6000lph SUS304 Drinking Water Filtration System 0

Industrial RO Water Treatment Plant 6000lph SUS304 Drinking Water Filtration System 1

Industrial RO Water Treatment Plant 6000lph SUS304 Drinking Water Filtration System 2

Industrial RO Water Treatment Plant 6000lph SUS304 Drinking Water Filtration System 3



Electric Control System

The total control cabinet: Japan Mitsubishi PLC programmable controller automatic control, Taiwan Wei Lun 10.2-inch large screen true color man-machine interface touch screen, France Schneider Electric components, RO membrane automatic washing, the original water tank and pure water tank water level control automatically stop , Low voltage, high voltage, overheating, overcurrent, phase protection and alarm function, pre-installed remote monitoring interface.





We provide various types technical support by providing e-mails, whatsapp, wechat, teamviewer etc. online communication

tools.

What are the RO water plant parameter?

Capacity of pure water: 250-100 000 LPH
Electrical power: AC 220V 18A/ 380V 9A 50Hz
High Pressure pump: CDL2S-11/2.2 KW for 500lph (1 item)
Rated power: 14Kw/H
Desalting rate:95-99%
Water recovery rate: 60-75%
Conductivity of raw water: ≤400μs
Conductivity of pure water: ≤10μ

Feature and advantages:

1. System can produce water continuously and high degree automation.

2. No need chemical to regenerate, easy operation and maintenance.

3. Core components of ro system are imported USA DOW membranes.

4. Automatic switch on when low water level, and switch off when high water level

5. System flushes RO membranes automatically, reducing membranes polluted speed.

6. Water shortage protection for multi-stage pump

7. Product water conductivity meter can monitor water quality online continuously.

8. Low operation cost and long life span
