Water Treatment Industrial Reverse Osmosis Water System , 45T Demineralized RO Membrane System

China Guangzhou Chunke Environmental Technology Co., Ltd. certification
China Guangzhou Chunke Environmental Technology Co., Ltd. certification
Hi Jessie, The 5T/H RO water plant was running well ! Perfect quality and excellent service ! Thank you so much Hunter ! I will place more order in near future surely !

—— Reid from Australia

We have been doing business with Chunke company for many years with high performance-cost and friendly service , such a honest factory, product are good !

—— Edward from South Africa

Hello cara,I received the water Filter last week.It look SUPER !!! Thanks !!! Thank you my friend !!!

—— Joice from Poland

It's many times buy from here. And always giving professional suggestions, help me a lot in business! Thanks!

—— Fraser from Russia

Good price , good quality and fast delivering .

—— Robert From UK

The brackish water machine is very suitable for my project and I have purchased it for the second time.

—— Hassan from Saudi Arabia

I'm Online Chat Now

Water Treatment Industrial Reverse Osmosis Water System , 45T Demineralized RO Membrane System

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Water Treatment Industrial Reverse Osmosis Water System , 45T Demineralized RO Membrane System

Product Details:
Place of Origin: China
Brand Name: CHUNKE
Certification: CE,ISO
Model Number: CK-RO-45T/H(A2)
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiate
Packaging Details: wooden box package
Delivery Time: 30 working days
Payment Terms: TT
Supply Ability: 30 Sets Per Quarter
Detailed Product Description
Application: Application Control: Automatic&manual
Membrane: Reverse Osmosis Function: Remove Turbidity
Capacity: 1080T/D Material: Stainless Steel 316 & FRP
High Light:

reverse osmosis water treatment plant

,

ro water purifier machine

Water Treatment Industrial Reverse Osmosis Water System 45T Demineralized RO Membrane System

Water Treatment Industrial Reverse Osmosis Water System , 45T Demineralized RO Membrane System 0

Our 45T/H Reverse osmosis system water traetment process flow diagram as following:



1. Raw water pump - Sand filter - Carbon filter - water softener - Cartridge filter - High pressure pump-RO membrane host
Application:



1. Produce pure water and high-purity water required for the production of electronic industry such as picture tube glass bulb, picture tube, liquid crystal display, circuit board, computer hard disk, integrated circuit, chip, monocrystalline silicon semiconductor, etc.
2. Preparation of heat and thermal power boilers, softened water and demineralized pure water required for medium and low pressure boiler feed water in factories and mines;
3. Preparation of medical infusions, injections, pharmaceuticals, biochemical products pure water, medical sterile water and artificial kidney dialysis pure water required by the pharmaceutical industry;
4. Drinking pure water, distilled water, mineral water, alcoholic brewing water and blending pure water for beverage (including alcohol) industry;
5. Seawater and brackish water to produce domestic water and drinking water;
6. Preparation of deionized water for electroplating process; pure water for battery (battery) production process; automobile, household appliances, building materials
Surface coating, cleaning chaotic water; pure water for coated glass; hard demineralized water required for textile printing and dyeing process;
7. Petrochemical industry such as chemical reaction cooling water; chemical pure water for chemical, chemical and fine chemical and cosmetic manufacturing processes;
8. High-quality water supply network system for hotel, building, community airport real estate property and swimming pool water purification;
9. Circuit board, electroplating, electronic industry wastewater treatment and reuse;
10. Treatment of life, hospital, tanning, printing and dyeing, paper industry wastewater and landfill leachate;
Water outlet: Conductivity <10us.cm25℃(support customize)
Production Capacity: 45m³ per hour



Our Product Advantages:

a, High-quality.Anti-corrosion equipment, long service life.Steady flow.

b, Simple operation, Easy to learn and install,small in size.

c,After-service.One year warranty, whole life service.





Reverse osmosis system optional:

Commodity
Remarks
Raw water pump
SS304
Sand filter 3000×3600 mm
Auto Valve/Stainless steel 304
Carbon filter 3000×3600 mm
Auto Valve/Stainless steel 304
5μm Cartridge filter
40″×5μm PP filters/SS304
Metering dosing system
SEKO/scale inhibitor
PH Regulating System
SEKO/Medicament
High pressure pump
SS304
One-stage reverse osmosis device water production: 45m3 / h, desalination rate: 96 ~ 99%, recovery: 65-70%
Membrane housing
8040-6 core/SS304/8PCS
Membrane element 4040
48 PCS
Stainless steel frame
Stainless steel 304
Water valve
1 Set
Pipe fittings, valves
SS304




Electronic control system
The total control cabinet: Japan Mitsubishi PLC programmable controller automatic control, Taiwan Wei Lun 10.2-inch large screen true color man-machine interface touch screen, France Schneider Electric components, RO membrane automatic washing, the original water tank and pure water tank water level control automatically stop , Low voltage, high voltage, overheating, overcurrent, phase protection and alarm function, pre-installed remote monitoring interface.
Filter Media
Quartz sand/Activated carbon
Pressure gauges
1 Set
Flowmeter Panel type
1 Set
SSWater tank
SS304



Description Change time Unit
Quartz sand should be replaced every about 2-3 years 50kg/bag
Activated carbon should be replaced every about 1-2 years 25kg/bag
PP Filter cartridge should be replaced every about months 25pcs/box
RO membrane should be replaced every about 2-3 years 1pc/box

Of 45T Reverse Osmosis Water System:

Water Treatment Industrial Reverse Osmosis Water System , 45T Demineralized RO Membrane System 1

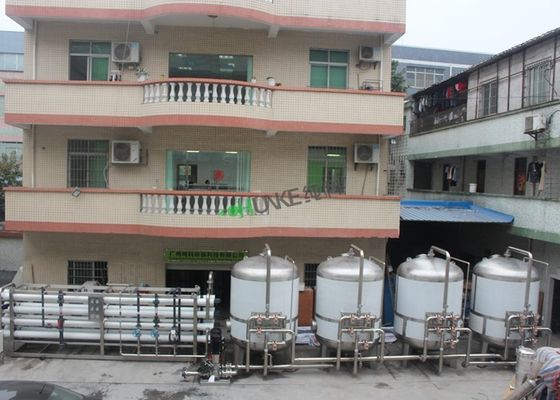

Products Show Of 45T Reverse Osmosis Water System

Water Treatment Industrial Reverse Osmosis Water System , 45T Demineralized RO Membrane System 2

Pls contact.

Water Treatment Industrial Reverse Osmosis Water System , 45T Demineralized RO Membrane System 3
