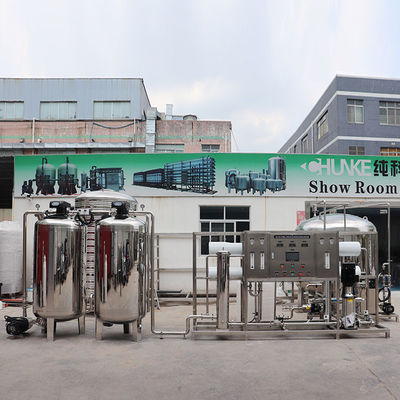

3TPH Water Purifier RO Water Treatment Plant For Bottle Water

3TPH Water Purifier RO Water Treatment Plant For Bottle Water
3TPH Water Purifier RO Water Treatment Plant For Bottle Water 3TPH Water Purifier RO Water Treatment Plant For Bottle Water 3TPH Water Purifier RO Water Treatment Plant For Bottle Water 3TPH Water Purifier RO Water Treatment Plant For Bottle Water

Large Image :  3TPH Water Purifier RO Water Treatment Plant For Bottle Water

Product Details:
Place of Origin: China
Brand Name: CHUNKE
Certification: CE,ISO
Model Number: CK-0.5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: wooden box package
Delivery Time: 7-15days
Payment Terms: TT
Supply Ability: 100 units per month
Detailed Product Description
Name: Water Treatment System Manufacturer Reverse Osmosis Machine 3T / H Bottled Water Equipment For Sale Material: SS304/316
Capacity: 0.25T-200T Membrane: USA DOW Membrane
Pump: CNP Control: PLC
High Light:

200T RO Water Treatment Plant


SS316 RO Water Treatment Plant


PLC Water Purifier Ro system

Water Purifier Ro reverse osmosis system for Sales Bottle Water Boiled Water Store


Water Treatment System

Raw water tank-raw water pump-multi-medium filter--active carbon filter –water softner (Sodium Ion Exchanger)-precision filter-RO mainframe(including chemical cleaning device)-ozone generator-finished product water tank

3TPH Water Purifier RO Water Treatment Plant For Bottle Water 0


Product Description
Short construction period, low project cost.
Superior corrosion resistance, service life is more than 20 yeas.
Easy installation, beautiful appearance.
Do not have special request on installation whether, can be installed in most environment conditions.
Tank volume can be expanded, movable and recycled.
Lowest maintenance requirements over tank life time
Easy maintenance and cleaning

First stage pretreatment (Sand filter)
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health. The effluent turbidity is less than 0.5NTU, CODMN less than 1.5mg / L, iron content of less than 0.05mg / L, SDI less than or equal to 5. Water filter is a kind of "physical - chemical" process, the water through granular materials when isolated filter water impurities and colloidal suspensions. Filter is an effective water purification and treatment of the main process in the preparation of pure water is an indispensable process.

Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms,reducing the residual value of water and pesticide pollution and other harmful pollutants. The structure of activated carbon filters and quartz sand filters, the difference is placed inside the strong adsorption capacity of activated carbon for removal by the quartz sand filter without the filter out organic material, adsorption of residual chlorine in the water, using water more than less than or equal to chlorine 0.1ML/M3, SDI less than or equal to 4, are strong oxidants chlorine, there are various types of membrane damage, in particular, reverse osmosis membranes are more sensitive to chlorine. In addition, the activation process, the surface of activated carbon to form non-crystalline parts of some oxygen-containing functional groups, these functional groups can have a chemical adsorption of activated carbon catalytic oxidation of bad news, to restore the performance, can effectively remove a number of metal ions in water.

Third stage pretreatment (Resin softener)
Cationic resin used for water softening, primarily to remove hardness of water. The hardness of water is a major calcium (Ca2 +),magnesium (Mg2 +) ion composition, when containing the raw water hardness ions through the resin layer, the water of the Ca2 +,Mg2+ was exchanged resin adsorption, and other objects at the same time the quality of the release of sodium Na + ions flow from the softener in the water is removed from the softened water hardness ions. So as to effectively prevent the reverse osmosis membrane fouling.System can automatically recoil, and so is red.

Fourth stage pretreatment (Micron filter)
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the
turbidity reached 1 degree, but still per milliliter of water for hundreds of thousands of particle size 1-5 microns colloidal
particles, the pressure on this filter to remove water after the particle size of 100 microns or less in small particles, to
further reduce the turbidity, to meet the next process of the water requirements of the protection of the next long-running
RO system
Using reverse osmosis technology for desalination, reverse osmosis membrane was only 0.001 micron pore size, can be harmful to remove dissolved solids and bacteria, viruses, etc., desalination rate of more than 99.6 percent, in line with national standards to produce pure water, the host section contains the security filter, high-pressure pump and reverse osmosis membrane, security filters for the fourth grade and above pre-treatment systems, high-pressure pump is the host of one of the core equipment for the reverse osmosis membrane elements to provide sufficient pressure to overcome the penetration resistance to pressure and run to meet the needs of a device to achieve the rated water.


1   Raw water pump provide the pressure to quartz sand filter/active carbon filter/softener.
2 Multi-medium filter get rid of turbidity, suspended matter, organic matter, colloid, etc.
3 Active Carbon filter Remove the color, smell, free chloride, organic matter, harmful matter, etc.
4 Softener exchange "ions" of calcium and magnesium with the most common and easiest method.
5 Security filter prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6 High pressure pump Provide the high pressure to RO membrane.
7 RO system main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

Our products can be widely used in food, beverage, Electroplating, electronics, optics, chemicals, semiconductors, cosmetics, thermal power plants, metallurgy, light industry, automobile manufacturing, pharmaceutical, medical, industrial water and other fields.

Main Features

1) Equipment operation cost is low,easy to manage;

2) Filter material can use many times after backwashing,long service life;

3) Strength,high temperature resistant,filter out of shape not easily;

4) The filter material spotlessness,the filter medium pollution;

5) Wide range of uses.

3TPH Water Purifier RO Water Treatment Plant For Bottle Water 13TPH Water Purifier RO Water Treatment Plant For Bottle Water 2
