500LPH RO water treatment equipment reverse osmosis water purification system

500LPH RO water treatment equipment reverse osmosis water purification system

Production Description

Pretreatment three-tank process flow:
Raw water tank-raw water pump-quartz sand filter-activated carbon filter-resin softener-security filter-high pressure pump-RO reverse osmosis system-pure water tank

Parameter Table

Key advantages

Energy saving and environmental protection: The system has low energy consumption and does not need to use a large number of chemical agents, which meets the requirements of environmental protection.
Efficient removal of impurities: Reverse osmosis technology can remove almost all impurities in water, including dissolved salts, organic matter, microorganisms, etc., greatly improving the quality of produced water.

Maintance

Flush with water that meets the inlet water index of reverse osmosis. In order to prevent precipitation, the low-pressure flushing temperature is 20 ℃ until the pH and conductivity of the water discharged from the cleaning outlet are close to the inlet water index.

After cleaning, empty the cleaning bucket and the cleaning filter, and rinse them with clean water.

Open the inlet valve and outlet valve of chemical cleaning, start the chemical cleaning pump, and circulate the cleaning for 1 hour.
Turn off the chemical cleaning pump, turn off the inlet valve and outlet valve of chemical cleaning, and soak for 1 hour. If the pollution is serious, the soaking time can be extended.

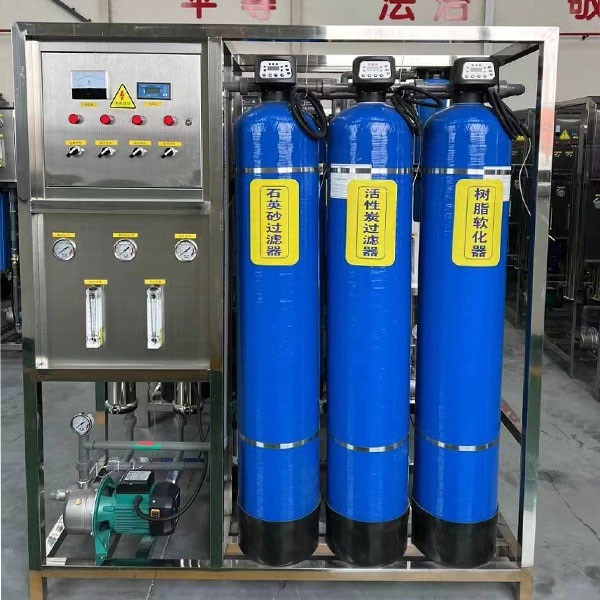

Product Display
