Single Pole Two Tank Ro Water Treatment Machine with Low Energy Requirements
  • Single Pole Two Tank Ro Water Treatment Machine with Low Energy Requirements

Single Pole Two Tank Ro Water Treatment Machine with Low Energy Requirements

Place of Origin Zhengzhou,China
Brand Name HYJB
Model Number 2T
Product Details
Size:
2500*700*1850
Power:
3KW
Voltage:
220/380
Applicable Industries:
Other, Mineral/ Commercial Water Industry
Productivity:
2000L/Hour
Material:
PVC
Highlight:

Single Pole Ro Water Treatment Machine

,

Two Tank Ro Water Treatment Machine

,

Low Energy Requirements Reverse Osmosis System

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Wooden Case
Delivery Time
7 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 Sets Per Month
Product Description

2 Tons of Single-pole 2-tank Reverse Osmosis Equipment Water Purification System

Production Description



Pretreatment two tanks process flow:

Raw water tank - raw water pump - quartz sand filter - activated carbon filter - scale control device - security filter - primary high pressure pump - primary RO reverse osmosis system - secondary high pressure pump - secondary RO reverse osmosis system - pure water tank



Parameter Table



Model
Water Making Ability
Inlet Caliber
Effluent Caliber
Blowdown alCer
Size(mm)
Power
YSRO-0.5T
0.5m3/h
DN20
DN20
DN15
1500×600×1500
1.3kw
YSRO-1T
1m3/h
DN25
DN25
DN20
1700×600×1500
2.1kw
YSRO-2T
2m3/h
DN32
DN25
DN20
2500×1000×1950
4.4kw
YSRO-3T
3m3/h
DN40
DN32
DN25
2500×1200×2150
4.5kw
YSRO-5T
5m3/h
DN50
DN40
DN32
2500×1350×2150
7.0kw
YSRO-8T
8m3/h
DN50
DN50
DN40
3500×1500×2150
11kw
YSRO-10T
10m3/h
DN50
DN50
DN40
3500×1600×2300
15kw





Key Advantage



1, low energy consumption, reverse osmosis membrane separation does not involve phase change, low energy requirements, compared with distillation, crystallization and evaporation has a big difference.

2, the separation conditions are mild, which is very important for the separation of heat-sensitive substances.

3, easy to operate, compact structure, low maintenance cost, easy automation.



Maintance



Regularly clean the reverse osmosis membrane to remove dirt and deposits from its surface and restore its permeability and water output.At the same time, keep the surrounding environment clean and dry to prevent dust and debris from entering the equipment. Regularly check the equipment's pipes, valves, pumps, etc. for leaks, damage, or loose connections, and address any issues promptly.

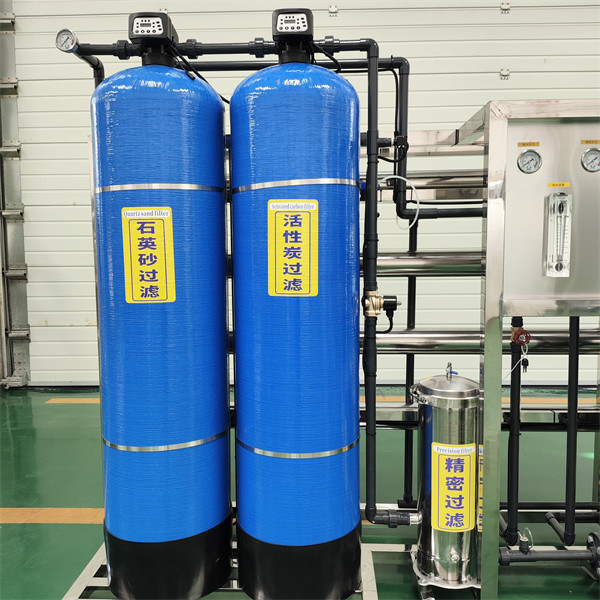

Product display

Single Pole Two Tank Ro Water Treatment Machine with Low Energy Requirements 0Single Pole Two Tank Ro Water Treatment Machine with Low Energy Requirements 1
