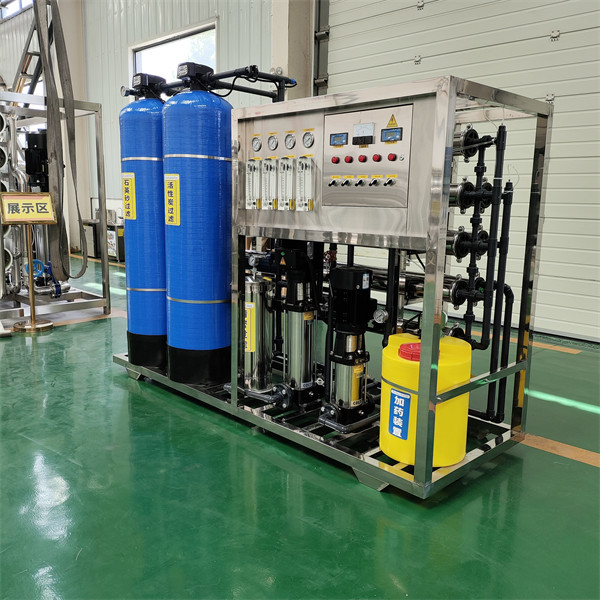

1.5-ton secondary reverse osmosis (RO) water treatment equipment
Parameter Table
Model
|
Water Making Ability
|
Inlet Caliber
|
Effluent Caliber
|
Blowdown alCer
|
Size(mm)
|
Power
|
YSRO-0.5T
|
0.5m3/h
|
DN20
|
DN20
|
DN15
|
1500×600×1500
|
1.3kw
|
YSRO-1T
|
1m3/h
|
DN25
|
DN25
|
DN20
|
1700×600×1500
|
2.1kw
|
YSRO-2T
|
2m3/h
|
DN32
|
DN25
|
DN20
|
2500×1000×1950
|
4.4kw
|
YSRO-3T
|
3m3/h
|
DN40
|
DN32
|
DN25
|
2500×1200×2150
|
4.5kw
|
YSRO-5T
|
5m3/h
|
DN50
|
DN40
|
DN32
|
2500×1350×2150
|
7.0kw
|
YSRO-8T
|
8m3/h
|
DN50
|
DN50
|
DN40
|
3500×1500×2150
|
11kw
|
YSRO-10T
|
10m3/h
|
DN50
|
DN50
|
DN40
|
3500×1600×2300
|
15kw
|
Working principle
Water intake: Water from tap water or other source is introduced into the device.
Pretreatment: Removal of large particles and organic matter through a pretreatment system.
Primary reverse osmosis: Water passes through a primary reverse osmosis membrane at high pressure, removing most ions, organic matter and microorganisms.
Secondary reverse osmosis: The water after the primary treatment enters the secondary reverse osmosis system to further remove residual impurities.
Purified water output: After secondary purification, the output water reaches the high purity water standard and can be used directly.
Technical characteristics
Efficient purification: Through the filtration of the two-stage reverse osmosis membrane, it can effectively remove ions, organic matter, microorganisms and other impurities in the water.
Stable water quality: The water quality is stable and will not fluctuate greatly due to the change of raw water quality.
Energy saving and environmental protection: The use of advanced energy-saving technology, effectively reduce the energy consumption and operating costs of equipment, while generating less waste water.
High degree of automation: easy to operate, can achieve one-click operation and remote monitoring, with fault self-diagnosis function.
