Reverse Osmosis Water Treatment Equipment
>

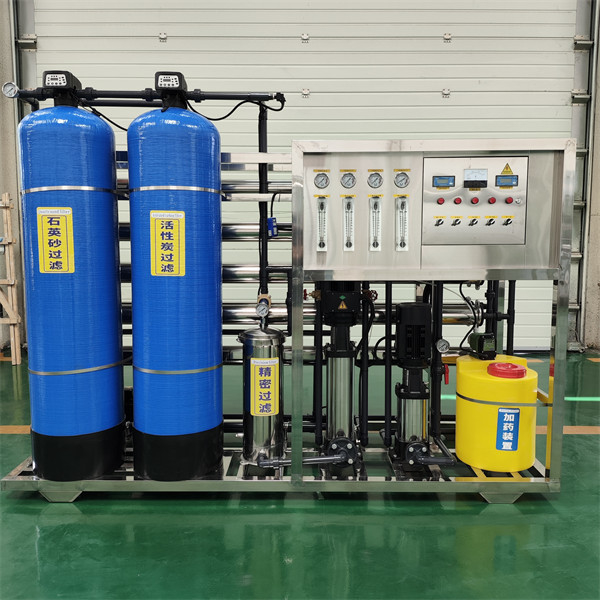

A bipolar unit capable of treating 1.5 tons of water per day
Equipment characteristics
Efficient purification: two-stage reverse osmosis membrane filtration can effectively remove ions, organic matter, microorganisms and other impurities in raw water, and the purification effect is obvious.
Stable water quality: The water quality is stable and will not fluctuate greatly due to the change of raw water quality.
High degree of automation: simple operation, enabling one-click operation and remote monitoring. With fault self-diagnosis function, it can find and eliminate faults in time to ensure the smooth operation of the equipment.
Parameter Table 参数表
|
Model
|
Water Making Ability
|
Inlet Caliber
|
Effluent Caliber
|
Blowdown alCer
|
Size(mm)
|
Power
|
|
YSRO-0.5T
|
0.5m3/h
|
DN20
|
DN20
|
DN15
|
1500×600×1500
|
1.3kw
|
|
YSRO-1T
|
1m3/h
|
DN25
|
DN25
|
DN20
|
1700×600×1500
|
2.1kw
|
|
YSRO-2T
|
2m3/h
|
DN32
|
DN25
|
DN20
|
2500×1000×1950
|
4.4kw
|
|
YSRO-3T
|
3m3/h
|
DN40
|
DN32
|
DN25
|
2500×1200×2150
|
4.5kw
|
|
YSRO-5T
|
5m3/h
|
DN50
|
DN40
|
DN32
|
2500×1350×2150
|
7.0kw
|
|
YSRO-8T
|
8m3/h
|
DN50
|
DN50
|
DN40
|
3500×1500×2150
|
11kw
|
|
YSRO-10T
|
10m3/h
|
DN50
|
DN50
|
DN40
|
3500×1600×2300
|
15kw
|
Working principle
Water intake: Water from tap water or other source is introduced into the device.
Pretreatment: Large particle impurities, suspended matter, colloids, etc. in raw water are removed by the pretreatment system to provide conditions for subsequent RO and EDI treatment.
