3 ton of single-stage reverse osmosis equipment with Provided Video Inspection
Product Description
It is composed of multi-media filter, active carbon filter and automatic water softener.
Multi-media filter: it is composed of automatic control valve, glass fiber reinforced plastic tank and quartz sand with different grade ratios. It can effectively remove suspended solids and some colloidal substances in the raw water and reduce the turbidity of the raw water. And can automatically backwash.
Activated carbon filter: It is composed of fully automatic control valve, high-quality glass tank and different water purification grade activated carbon. It can effectively adsorb heavy metals, free chlorine, chloroform and other harmful substances in the raw water. It can be backwashed automatically.
Food-grade water softener: It is composed of automatic control valve, high-quality glass fiber reinforced plastic tank and food-grade resin. Through the food grade water softener, it can effectively remove calcium and magnesium ions in the water. So that the reverse osmosis equipment in operation will not affect the service life of reverse osmosis membrane due to scaling. And it can be regenerated automatically.
Parameter Table
Model
|
Water Making Ability
|
Inlet Caliber
|
Effluent Caliber
|
Blowdown alCer
|
Size(mm)
|
Power
|
YSRO-0.5T
|
0.5m3/h
|
DN20
|
DN20
|
DN15
|
1500×600×1500
|
1.3kw
|
YSRO-1T
|
1m3/h
|
DN25
|
DN25
|
DN20
|
1700×600×1500
|
2.1kw
|
YSRO-2T
|
2m3/h
|
DN32
|
DN25
|
DN20
|
2500×1000×1950
|
4.4kw
|
YSRO-3T
|
3m3/h
|
DN40
|
DN32
|
DN25
|
2500×1200×2150
|
4.5kw
|
YSRO-5T
|
5m3/h
|
DN50
|
DN40
|
DN32
|
2500×1350×2150
|
7.0kw
|
YSRO-8T
|
8m3/h
|
DN50
|
DN50
|
DN40
|
3500×1500×2150
|
11kw
|
YSRO-10T
|
10m3/h
|
DN50
|
DN50
|
DN40
|
3500×1600×2300
|
15kw
|
Key Advantage
(1) Reverse osmosis equipment device desalination rate is high, single membrane desalination rate of up to 99%, a reverse osmosis system desalination rate can be stabilized at more than 90%, two reverse osmosis system desalination rate can be stabilized at more than 98%.
(2) As the reverse osmosis equipment can effectively remove microorganisms, organic matter and iron, silicon and other inorganic substances, the water quality is much better than other methods.
(3) Compared with the ion exchange system of pure water, it reduces the cost of chemicals consu
med for resin regeneration, labor cost and waste water treatment caused by regeneration, and reduces environmental pollution.
(4) slowed down due to fluctuations in raw water quality caused by the changes in the quality of produced water, from the surface of the production of water quality is conducive to stability, which has a positive effect on the stability of the quality of demineralized water products.
(5) set up after reverse osmosis equipment, greatly reducing the burden of the terminal microporous membrane filter, thus extending the life of the terminal microporous membrane filter.
Maintenance
1. Before using, please understand how to use the equipment and read the manual carefully.
2. Replace the cartridge regularly to avoid stagnation of the cartridge reducing the effect of the equipment.
3. It is recommended not to add any substances in use to maintain the purity of water.
4. Waste water treatment should be done properly to avoid damage to the environment.

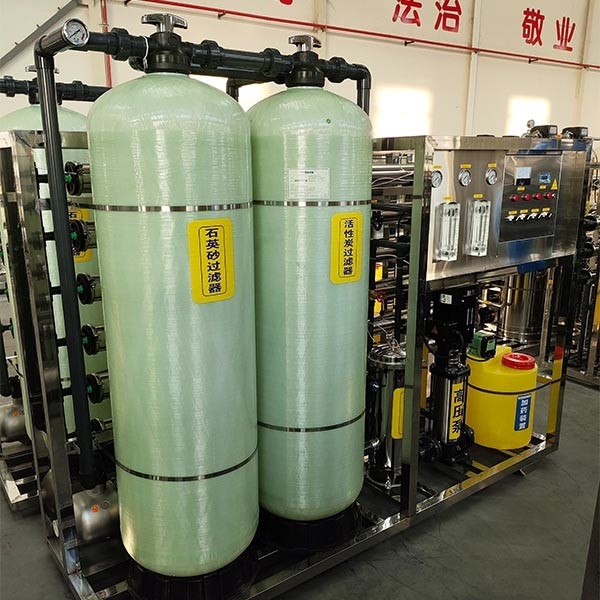

Product Display
