Integrated RO Water Purifier High Quality Reverse Osmosis Water Treatment Machinery
  • Integrated RO Water Purifier High Quality Reverse Osmosis Water Treatment Machinery
  • Integrated RO Water Purifier High Quality Reverse Osmosis Water Treatment Machinery

Integrated RO Water Purifier High Quality Reverse Osmosis Water Treatment Machinery

Place of Origin Zhengzhou,China
Brand Name HYJB
Model Number 1T
Product Details
Water Inlet Pressure:
0.3MPA
Core Components:
Pump
Applicable Industries:
Machinery Repair Shops
Weight After Water Test:
275kw
Weight:
155kw
Size:
1500*650*1700mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Wooden Case
Delivery Time
7days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 sets per month
Product Description

Integrated RO Water Purifier High Quality Reverse Osmosis Water Treatment Machinery



Production Description



Pretreatment two-tank process flow:

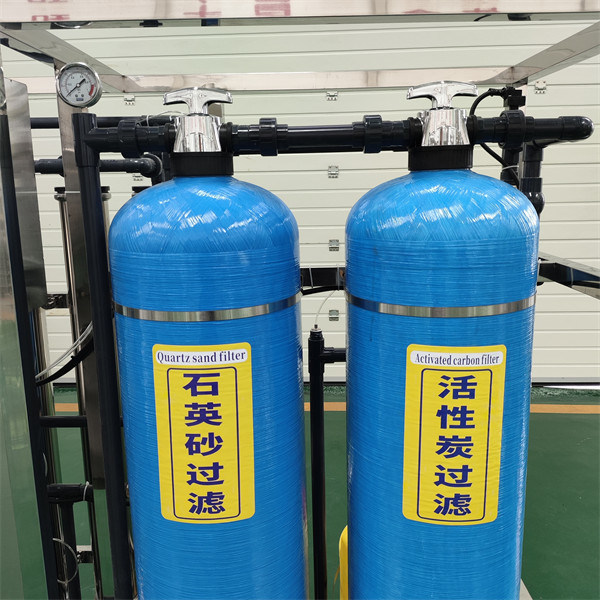

Raw water tank-raw water pump-quartz sand filter-activated carbon filter-scale inhibitor dosing device-security filter-high pressure pump-RO reverse osmosis system-pure water tank



Parameter Table



Model
Water Making Ability
Inlet Caliber
Effluent Caliber
Blowdown alCer
Size(mm)
Power
YSRO-0.5T
0.5m3/h
DN20
DN20
DN15
1500×600×1500
1.3kw
YSRO-1T
1m3/h
DN25
DN25
DN20
1700×600×1500
2.1kw
YSRO-2T
2m3/h
DN32
DN25
DN20
2500×1000×1950
4.4kw
YSRO-3T
3m3/h
DN40
DN32
DN25
2500×1200×2150
4.5kw
YSRO-5T
5m3/h
DN50
DN40
DN32
2500×1350×2150
7.0kw
YSRO-8T
8m3/h
DN50
DN50
DN40
3500×1500×2150
11kw
YSRO-10T
10m3/h
DN50
DN50
DN40
3500×1600×2300
15kw





Key advantages



Efficient water purification: The double-tube tank design makes the reverse osmosis process more efficient and ensures a significant improvement in water quality.Reverse osmosis technology itself can effectively remove impurities such as dissolved salts, colloids, bacteria, viruses, bacterial endotoxins and most organic substances in water, making water clear and transparent.



Maintance



Check and adjust operating parameters
Check the operating parameters, such as water inlet pressure, flow, temperature, etc., to ensure that they are within the normal range.
Adjust the parameters: in case of any abnormality, adjust the parameters or check the relevant components in time to ensure the normal operation of the equipment.
V. Preventive Maintenance
Make maintenance plan: make preventive maintenance plan according to the use of equipment and maintenance records.
Regular inspection: inspect, test and repair the equipment regularly to prevent potential problems.
