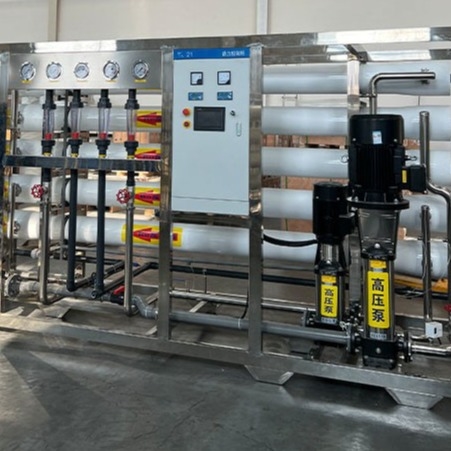

6T Double-Stage Reverse Osmosis Water Treatment Equipment Of Powerful Function
Product Description:
Original water tank -- original water pump -- quartz sand filter -- activated carbon filter -- scale inhibition feeding device -- security filter -- primary high pressure pump -- primary RO reverse osmosis system -- secondary high pressure pump -- secondary RO reverse osmosis system -- pure water tank
Parameter Table:
Model
|
Water Making Ability
|
Inlet Caliber
|
Effluent Caliber
|
Blowdown alCer
|
Size(mm)
|
Power
|
YSRO-0.5T
|
0.5m3/h
|
DN20
|
DN20
|
DN15
|
1500×600×1500
|
1.3kw
|
YSRO-1T
|
1m3/h
|
DN25
|
DN25
|
DN20
|
1700×600×1500
|
2.1kw
|
YSRO-2T
|
2m3/h
|
DN32
|
DN25
|
DN20
|
2500×1000×1950
|
4.4kw
|
YSRO-3T
|
3m3/h
|
DN40
|
DN32
|
DN25
|
2500×1200×2150
|
4.5kw
|
YSRO-5T
|
5m3/h
|
DN50
|
DN40
|
DN32
|
2500×1350×2150
|
7.0kw
|
YSRO-8T
|
8m3/h
|
DN50
|
DN50
|
DN40
|
3500×1500×2150
|
11kw
|
YSRO-10T
|
10m3/h
|
DN50
|
DN50
|
DN40
|
3500×1600×2300
|
15kw
|
Key Advantages:
Reverse osmosis separation process does not require heating, no phase change with less energy consumption, small equipment volume, simple process, easy operation and maintenance, no pollution, strong adaptability, a wide range of applications and other advantages, has become one of the important methods of water treatment technology.
Maintance:
Before the reverse osmosis system is put back into use, flush the system with low pressure feed water for one hour, then flush the system with high pressure feed water for 5-10 minutes; Regardless of low pressure flushing or high pressure flushing, the system's production water discharge valve should be fully opened. Before the system is restored to normal operation, check and confirm that the product water does not contain any fungicide.
Picture Display:
