TOPEP Supply Reverse Osmosis Ro Plant Sea Water Desalination Plant Water Treatment Machinery
How it works
Reverse osmosis is a membrane separation technology driven by pressure with the help of the function of selective permeable (semi-permeable) membrane. When the pressure applied in the system is greater than the osmotic pressure of the inlet water solution, water molecules continuously permeate the membrane and flow into the central tube through the water production channel, and then flow out of the impurities in the water at one end, such as ions, organic matter, bacteria, viruses, etc.Is trapped at the water inlet side of the membrane and then flows out at the concentrated water outlet end, thereby achieving the purpose of separation and purification.
Parameter Table
Model
|
Water Making Ability
|
Inlet Caliber
|
Effluent Caliber
|
Blowdown alCer
|
Size(mm)
|
Power
|
YSRO-0.5T
|
0.5m3/h
|
DN20
|
DN20
|
DN15
|
1500×600×1500
|
1.3kw
|
YSRO-1T
|
1m3/h
|
DN25
|
DN25
|
DN20
|
1700×600×1500
|
2.1kw
|
YSRO-2T
|
2m3/h
|
DN32
|
DN25
|
DN20
|
2500×1000×1950
|
4.4kw
|
YSRO-3T
|
3m3/h
|
DN40
|
DN32
|
DN25
|
2500×1200×2150
|
4.5kw
|
YSRO-5T
|
5m3/h
|
DN50
|
DN40
|
DN32
|
2500×1350×2150
|
7.0kw
|
YSRO-8T
|
8m3/h
|
DN50
|
DN50
|
DN40
|
3500×1500×2150
|
11kw
|
YSRO-10T
|
10m3/h
|
DN50
|
DN50
|
DN40
|
3500×1600×2300
|
15kw
|
Key Advantages
High efficiency: Reverse osmosis equipment can effectively remove various impurities and harmful substances in water, such as bacteria, viruses, heavy metal ions, organic matter, ammonia nitrogen, etc., so that the water quality is significantly improved.At the same time, reverse osmosis equipment also has a high recovery rate and water production, which can meet most industrial and domestic water needs.
Maintance
Acid cleaning of reverse osmosis equipment
1. Open the produced water return valve of the reverse osmosis equipment, flush the chemical cleaning bucket, and add 3 ~ 4 grids of water after flushing.
2. Open the inlet valve and outlet valve of chemical cleaning, and start the chemical cleaning pump to flush the pipeline.
3. Open the produced water return valve of the reverse osmosis equipment, and add 3 ~ 4 grids of water into the bucket.
4. Add chemicals into the chemical cleaning bucket according to the water quality and site conditions.
5. Open the water inlet valve and water outlet valve of chemical cleaning, start the chemical cleaning pump, and circulate the cleaning for 1 hour.

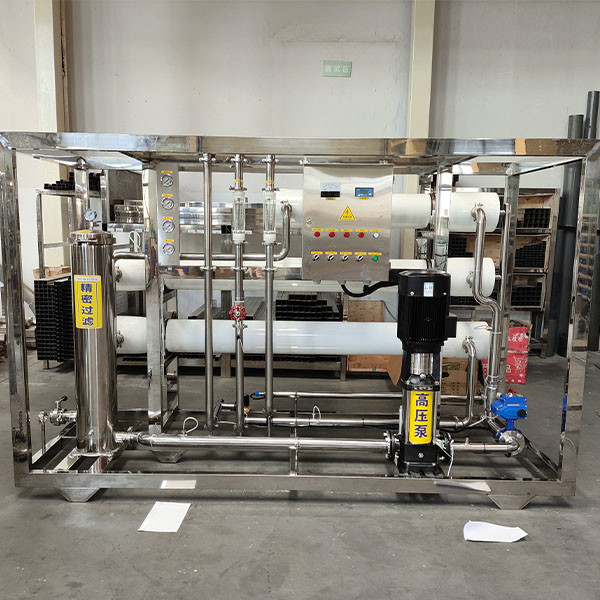

Product Display
