Eco Friendly Stainless Steel Water Purification System For Reverse Osmosis System
  • Eco Friendly Stainless Steel Water Purification System For Reverse Osmosis System
  • Eco Friendly Stainless Steel Water Purification System For Reverse Osmosis System

Eco Friendly Stainless Steel Water Purification System For Reverse Osmosis System

Place of Origin Zhengzhou,China
Brand Name HYJB
Model Number 30T Single Stage
Product Details
Function:
Beverage Or Food Company
Name:
Pure Water Treatment
Material:
Stainless Steel
Control Method:
Full Control Or Semi Control
Capacity:
1000 Gallons Per Day
Type:
RO
Highlight:

Reverse Osmosis Water Purification System

,

Eco Friendly Water Purification System

,

Eco Friendly Low Maintenance Cost

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
negotiable
Packaging Details
wooden case
Delivery Time
7 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 sets per month
Product Description

30 Tons Stainless Steel Singles Stage Of Reverse Osmosis Equipment For Industry



Product Description:



Reverse osmosis is an emerging water treatment technology, through the reverse osmosis host to improve the purity of water quality, the impurities in the water to remove, the world's earliest use of reverse osmosis technology in the United States, developed through the pressure difference generated power membrane separation technology, with the continuous development of this technology, we also began to reverse osmosis research, has produced a variety of reverse osmosis equipment.



Parameter Table:

Model
Water Making Ability
Inlet Caliber
Effluent Caliber
Blowdown alCer
Size(mm)
Power
YSRO-0.5T
0.5m3/h
DN20
DN20
DN15
1500×600×1500
1.3kw
YSRO-1T
1m3/h
DN25
DN25
DN20
1700×600×1500
2.1kw
YSRO-2T
2m3/h
DN32
DN25
DN20
2500×1000×1950
4.4kw
YSRO-3T
3m3/h
DN40
DN32
DN25
2500×1200×2150
4.5kw
YSRO-5T
5m3/h
DN50
DN40
DN32
2500×1350×2150
7.0kw
YSRO-8T
8m3/h
DN50
DN50
DN40
3500×1500×2150
11kw
YSRO-10T
10m3/h
DN50
DN50
DN40
3500×1600×2300
15kw







Key Advantages:



Water leakage automatically shut off the water source, to ensure that nothing goes wrong.
When the water quality exceeds the standard, the water is automatically cut off, and the adaptive treatment is qualified.
Filter replacement automatic reminder, while reminding pretreatment filter and purification package, the first in China.
Real-time on-line detection of water production resistivity.



Maintance:



Daily maintenance should achieve clean appearance, showing natural color, smooth oil circuit, good lubrication, clean and bright oil. In order to ensure the flexible operation of the equipment and normal operation, the reverse osmosis membrane of the deactivated pure water equipment is regularly cleaned at low pressure, especially in the summer, as far as possible to clean at least once a day. If the equipment is disabled for more than seven days, 0.5~1 sodium sulfite or 0.5~1 formaldehyde solution should be used to maintain the reverse osmosis membrane, and the PH value of the protective solution should be timely detected.

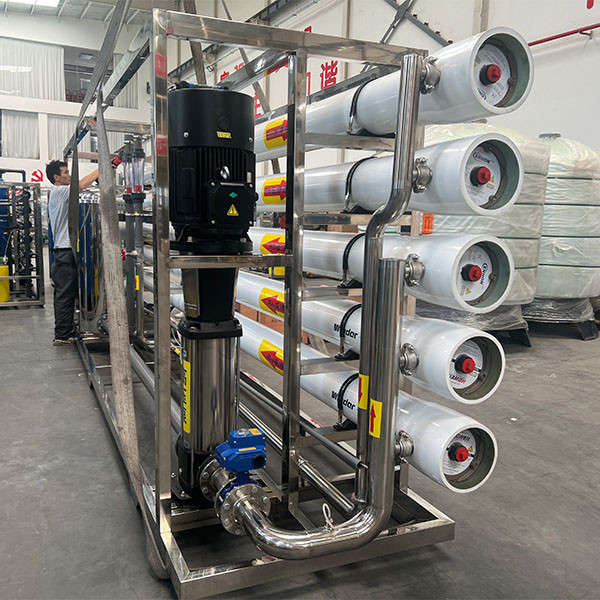

Picture Display:

Eco Friendly Stainless Steel Water Purification System For Reverse Osmosis System 0Eco Friendly Stainless Steel Water Purification System For Reverse Osmosis System 1
