1T Automatic two-tank Mineral Pure Water Reverse Osmosis Treatment Equipment
  • 1T Automatic two-tank Mineral Pure Water Reverse Osmosis Treatment Equipment
  • 1T Automatic two-tank Mineral Pure Water Reverse Osmosis Treatment Equipment

1T Automatic two-tank Mineral Pure Water Reverse Osmosis Treatment Equipment

Place of Origin Zhengzhou ,China
Brand Name HYJB
Model Number 1 tons double -stage
Product Details
Showroom Location:
None
Warranty Of Core Components::
1 Year
Capacity::
1T/h
Material::
Wooden Case
Core Components::
Pump, Engine
Applicable Industries::
Other, Mineral/ Commercial Water Industry
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
wooden case
Delivery Time
7 days
Payment Terms
L/C, D/A, D/P, T/T, T/T, Western Union, MoneyGram
Supply Ability
200 sets /month
Product Description

1T Automatic two-tank Mineral Pure Water Reverse Osmosis Treatment Equipment











Description



Reverse osmosis system is the core component of the whole pure water system, only through reverse osmosis to achieve the standard of pure water. The reverse osmosis system mainly adopts the membrane filtration process. Then water molecules can pass through the reverse osmosis membrane. Some other ions such as calcium, magnesium, sodium, etc. are discharged together with the wastewater. The following components of this system.



1. Precision filter: mainly filtering large particles of molecules in the water.



2. Special high-pressure pump: provide strong power for reverse osmosis equipment.



3. reverse osmosis membrane reverse osmosis membrane using membrane filtration technology. Let the water molecules through some other ions can not pass to achieve the purpose of water purification.







Parameter Table





Model
Water Making Ability
Inlet Caliber
Effluent Caliber
Blowdown alCer
Size(mm)
Power
YSRO-0.5T
0.5m3/h
DN20
DN20
DN15
1500×600×1500
1.3kw
YSRO-1T
1m3/h
DN25
DN25
DN20
1700×600×1500
2.1kw
YSRO-2T
2m3/h
DN32
DN25
DN20
2500×1000×1950
4.4kw
YSRO-3T
3m3/h
DN40
DN32
DN25
2500×1200×2150
4.5kw
YSRO-5T
5m3/h
DN50
DN40
DN32
2500×1350×2150
7.0kw
YSRO-8T
8m3/h
DN50
DN50
DN40
3500×1500×2150
11kw
YSRO-10T
10m3/h
DN50
DN50
DN40
3500×1600×2300
15kw









Functional features:

★ Laboratory water purifier with pre-treatment and vacuum pressure water storage tank integrated design, beautiful and space-saving;



★ Laboratory water purifier with two water intake, a machine for two purposes, can be produced at the same time RO pure water and UP ultrapure water;



★ Microcomputer automatic control program design, touch keyboard operating system;



★System with boot self-test, water shortage protection alarm, power failure automatic reset, full of water automatic shutdown, ultra-low pressure protection and other functions;



★ The system has RO membrane automatic flushing, regular ** function;



★ Built-in 20-inch large-capacity integrated injection molding pre-processor, with automatic backwash function (** No.: ZL 2008 2 0223798.6)









Main uses



1, the preparation of electronic industrial production, such as picture tube glass shell, picture tube, liquid crystal display, circuit boards, computer hard disk, integrated circuit chips, monocrystalline silicon semiconductor and other processes required for the pure water, high purity water.



2, the preparation of thermal power, thermal power boilers, factories and mining enterprises in the low-pressure boiler feed water required for softening water, desalination of pure water.



3, the preparation of medical I.V., injections, pharmaceuticals, biochemical products required by the pharmaceutical industry, pure water, medical sterile water and pure water for artificial kidney dialysis, etc.;.



4, the preparation of beverages (including alcohol) industry, drinking water, distilled water, mineral water, alcohol brewing water and blending with pure water.



5, seawater, brackish water to produce domestic water and drinking water.

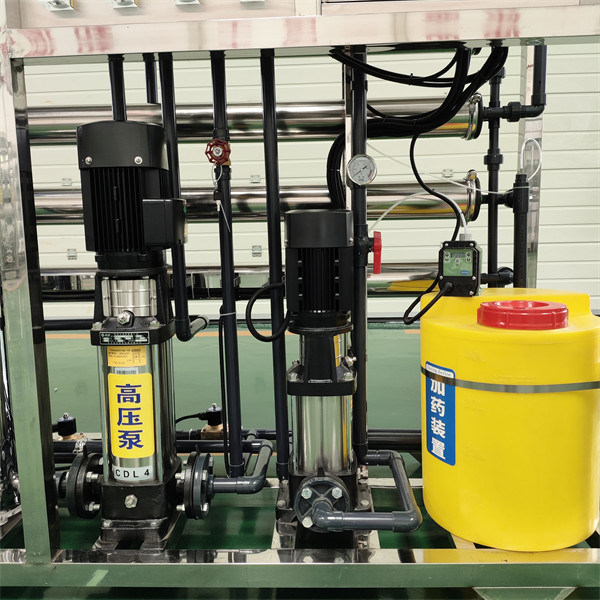

Product  Display

1T Automatic two-tank Mineral Pure Water Reverse Osmosis Treatment Equipment 01T Automatic two-tank Mineral Pure Water Reverse Osmosis Treatment Equipment 11T Automatic two-tank Mineral Pure Water Reverse Osmosis Treatment Equipment 21T Automatic two-tank Mineral Pure Water Reverse Osmosis Treatment Equipment 31T Automatic two-tank Mineral Pure Water Reverse Osmosis Treatment Equipment 4
