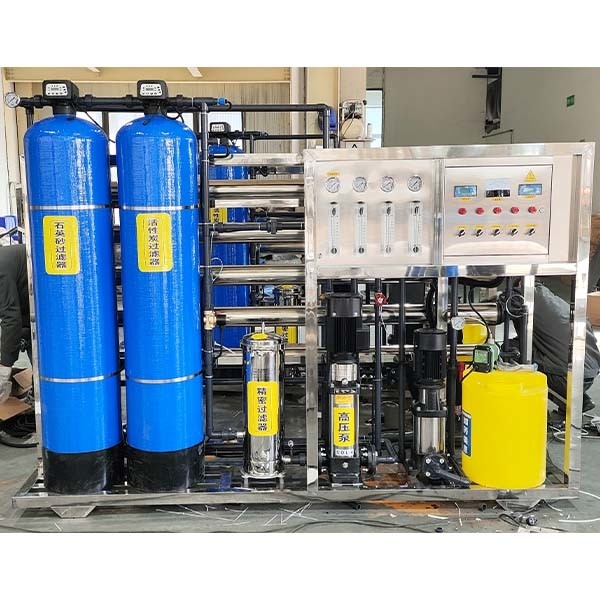

Reverse Osmosis Seawater Desalination Equipment 1 Ton Reverse Osmosis Water Filtration System
Production Description
Pretreatment three-tank process flow:
Raw water tank-raw water pump-quartz sand filter-activated carbon filter-resin softener-security filter-high pressure pump-RO reverse osmosis system-pure water tank
Parameter Table
Model
|
Water Making Ability
|
Inlet Caliber
|
Effluent Caliber
|
Blowdown alCer
|
Size(mm)
|
Power
|
YSRO-0.5T
|
0.5m3/h
|
DN20
|
DN20
|
DN15
|
1500×600×1500
|
1.3kw
|
YSRO-1T
|
1m3/h
|
DN25
|
DN25
|
DN20
|
1700×600×1500
|
2.1kw
|
YSRO-2T
|
2m3/h
|
DN32
|
DN25
|
DN20
|
2500×1000×1950
|
4.4kw
|
YSRO-3T
|
3m3/h
|
DN40
|
DN32
|
DN25
|
2500×1200×2150
|
4.5kw
|
YSRO-5T
|
5m3/h
|
DN50
|
DN40
|
DN32
|
2500×1350×2150
|
7.0kw
|
YSRO-8T
|
8m3/h
|
DN50
|
DN50
|
DN40
|
3500×1500×2150
|
11kw
|
YSRO-10T
|
10m3/h
|
DN50
|
DN50
|
DN40
|
3500×1600×2300
|
15kw
|
Key advantages
Environmental protection: reverse osmosis equipment is a physical water treatment method, which does not require the use of chemical agents, so it will not produce secondary pollution, nor will it produce a large amount of waste water and waste residue, which is environmentally friendly.
Strong reliability: the reverse osmosis equipment has high stability and reliability, and can operate stably for a long time.In addition, the maintenance and repair of reverse osmosis equipment is relatively simple and easy to operate.
Maintance
Measure the pH in the bucket every ten minutes for three consecutive times until there is no significant change in the pH for three consecutive times.
Flush with water that meets the inlet water index of reverse osmosis. In order to prevent precipitation, the low-pressure flushing temperature is 20 ℃ until the pH and conductivity of the water discharged from the cleaning outlet are close to the inlet water index.
