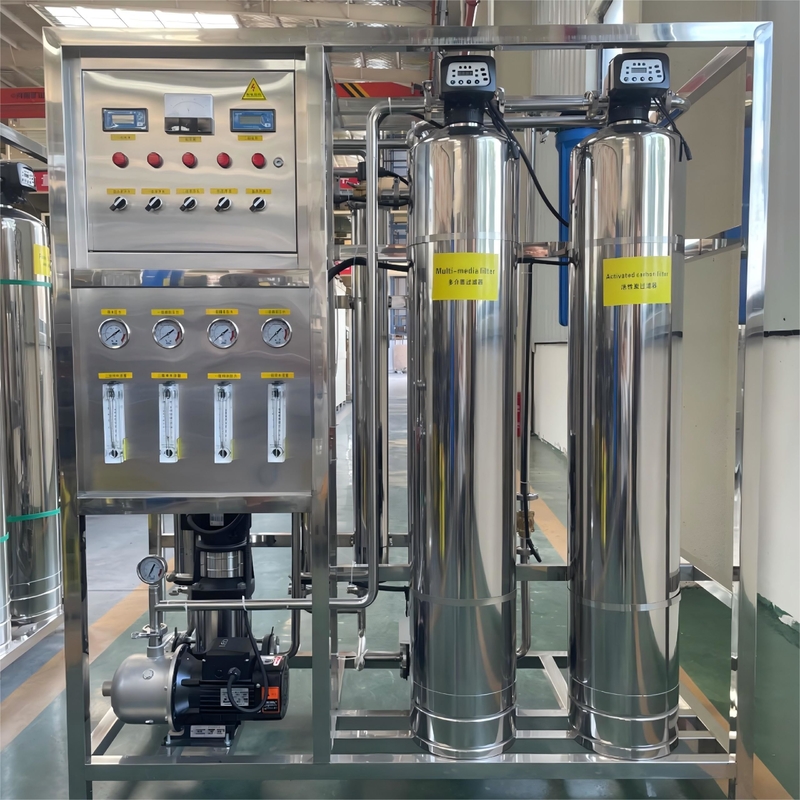

0.5 tons double stage reverse osmosis (RO) water treatment equipment
Equipment composition
It mainly includes pre-treatment system, first-stage reverse osmosis system, second-stage reverse osmosis system, post-treatment system and control system
Parameter Table
|
Model
|
Water Making Ability
|
Inlet Caliber
|
Effluent Caliber
|
Blowdown alCer
|
Size(mm)
|
Power
|
|
YSRO-0.5T
|
0.5m3/h
|
DN20
|
DN20
|
DN15
|
1500×600×1500
|
1.3kw
|
|
YSRO-1T
|
1m3/h
|
DN25
|
DN25
|
DN20
|
1700×600×1500
|
2.1kw
|
|
YSRO-2T
|
2m3/h
|
DN32
|
DN25
|
DN20
|
2500×1000×1950
|
4.4kw
|
|
YSRO-3T
|
3m3/h
|
DN40
|
DN32
|
DN25
|
2500×1200×2150
|
4.5kw
|
|
YSRO-5T
|
5m3/h
|
DN50
|
DN40
|
DN32
|
2500×1350×2150
|
7.0kw
|
|
YSRO-8T
|
8m3/h
|
DN50
|
DN50
|
DN40
|
3500×1500×2150
|
11kw
|
|
YSRO-10T
|
10m3/h
|
DN50
|
DN50
|
DN40
|
3500×1600×2300
|
15kw
|
Working principle
Two-stage reverse osmosis equipment is an efficient water treatment equipment, which removes impurities such as dissolved salts, organic matter, bacteria and viruses in water through the combination of two-stage reverse osmosis membranes, so as to achieve high purity water quality. This equipment is especially suitable for occasions where high quality pure water is needed, such as industrial production, pharmaceutical manufacturing, food and beverage processing and other fields.
Technical characteristics
Efficient purification: Through the filtration of the two-stage reverse osmosis membrane, it can effectively remove ions, organic matter, microorganisms and other impurities in the water.
Stable water quality: The water quality is stable and will not fluctuate greatly due to the change of raw water quality.
Energy saving and environmental protection: The use of advanced energy-saving technology, effectively reduce the energy consumption and operating costs of equipment, while generating less waste water.
advantage
Efficient purification: The combination of two-stage reverse osmosis membranes can more effectively remove various impurities and harmful substances in water.
Energy saving and environmental protection: Reduce energy consumption and water waste by optimizing the reverse osmosis process and control system.
,
Packaging and transportation
FAQ
1.Material of reverse osmosis system?
Support customization, You can choose FRP(fiber glass) filters with U-PVC pipe, stainless steel filters with U-PVC pipe or full stainless steel.
2. What is packing of this machine? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you only need to open wooden case to pick up machine.
3. What is the daily maintenance of water treatment equipment?
Periodically check the running status of each component of the device. Clean and replace filter elements, membrane components and other consumable products. Keep the area around equipment clean and dry. Record device running data to discover and solve problems in time.
4. How to extend the service life of water treatment equipment?
Choose high quality equipment and accessories. Operate and maintain the equipment in strict accordance with the manual. Regular professional maintenance and maintenance services. Avoid equipment overload for a long time.
