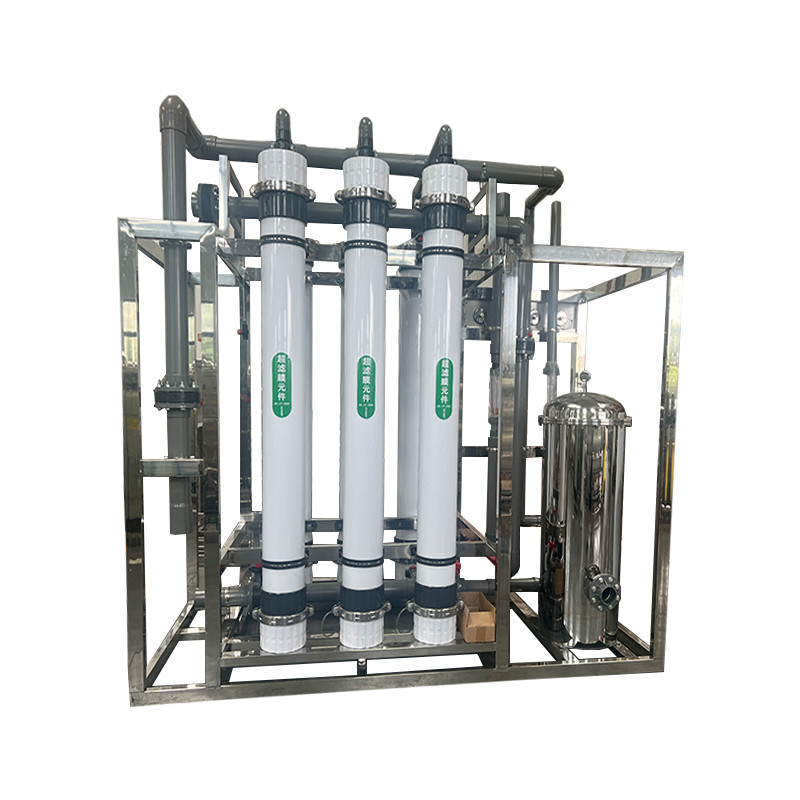

30000L Per Hour Innovative Technology Environmental Protection Ultrafiltration Water Treatment Device

30000L Per Hour Innovative Technology Environmental Protection Ultrafiltration Water Treatment Device

30000L Per Hour Innovative Technology Environmental Protection Ultrafiltration Water Treatment Device

Place of Origin	Zhengzhou,China
Brand Name	HYJB
Model Number	1000L of single-stage

Product Details

Water Yield:

30 Tons/hour

Voltage:

380V

Net Weight:

510kg

Dimensions:

3600*1700*3100

Airframe Material:

SUS 304

Warranty:

1 Year

Control:

Automatic Control

Technical:

Separation And Purification

Source Of Water:

Ground Water Or Tap Water

Source Water TDS:

<4000ppm

Operating Pressure:

0.15-0.4

Application Scenario:

Electronics, Industrial, Pharmaceutical, Chemical And Laboratory

Core Components:

Pump, Engine

Waste Water Outlet:

25mm

Operating Temp:

5-40C

Highlight:

Environmental Protection Ultrafiltration Water Treatment Device

,

Innovative Technology Ultrafiltration Water Treatment Device

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

Wooden Case

Delivery Time

7days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

200 sets per month

Product Description

30T/H ultrafiltration equipment

Ultrafiltration system composition

Pretreatment system: usually includes quartz sand filter, activated carbon filter, etc., used to remove large particle impurities, residual chlorine and odor in water.
Ultrafiltration membrane assembly: The core part of the device, consisting of a plurality of ultrafiltration membrane elements, through the principle of physical screening to trap impurities in the water.
Booster pump: provides sufficient pressure to the water flow to ensure that the water can pass smoothly through the ultrafiltration membrane.
Backwash system: It is used to clean the ultrafiltration membrane regularly to restore its filtration performance.
Control system: including PLC controller, touch screen, etc., used to monitor the operating status of the equipment, adjust the working parameters and realize automatic control.

Parameter Table

Model	Water Making Ability	Inlet Caliber	Effluent Caliber	Blowdown alCer	Size(mm)	Power
YSRO-0.5T	0.5m3/h	DN20	DN20	DN15	1500×600×1500	1.3kw
YSRO-1T	1m3/h	DN25	DN25	DN20	1700×600×1500	2.1kw
YSRO-2T	2m3/h	DN32	DN25	DN20	2500×1000×1950	4.4kw
YSRO-3T	3m3/h	DN40	DN32	DN25	2500×1200×2150	4.5kw
YSRO-5T	5m3/h	DN50	DN40	DN32	2500×1350×2150	7.0kw
YSRO-8T	8m3/h	DN50	DN50	DN40	3500×1500×2150	11kw
YSRO-10T	10m3/h	DN50	DN50	DN40	3500×1600×2300	15kw

30000L Per Hour Innovative Technology Environmental Protection Ultrafiltration Water Treatment Device 0

30000L Per Hour Innovative Technology Environmental Protection Ultrafiltration Water Treatment Device 2

30000L Per Hour Innovative Technology Environmental Protection Ultrafiltration Water Treatment Device 3

30000L Per Hour Innovative Technology Environmental Protection Ultrafiltration Water Treatment Device 5

30000L Per Hour Innovative Technology Environmental Protection Ultrafiltration Water Treatment Device 7

Packaging and transportation

30000L Per Hour Innovative Technology Environmental Protection Ultrafiltration Water Treatment Device 10

FAQ

1.Material of reverse osmosis system?

Support customization, You can choose FRP(fiber glass) filters with U-PVC pipe, stainless steel filters with U-PVC pipe or full stainless steel.

2. What is packing of this machine? Is it suitable for shipment?

Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you only need to open wooden case to pick up machine.

3. What is the daily maintenance of water treatment equipment?

Periodically check the running status of each component of the device. Clean and replace filter elements, membrane components and other consumable products. Keep the area around equipment clean and dry. Record device running data to discover and solve problems in time.

4. How to extend the service life of water treatment equipment?

Choose high quality equipment and accessories. Operate and maintain the equipment in strict accordance with the manual. Regular professional maintenance and maintenance services. Avoid equipment overload for a long time.

5.How can I pay you?

After we confirmed order, I will send you sales contract with our company bank information. You can transfer money to our company bank account by T/T. Or you can pay via Western Union with credit card, Smartcard or Visa Card.Or do L/C if it is accepted by both of us .
If you still don't know how to pay, just call me at+86 18203685329(whatsapp no.)
