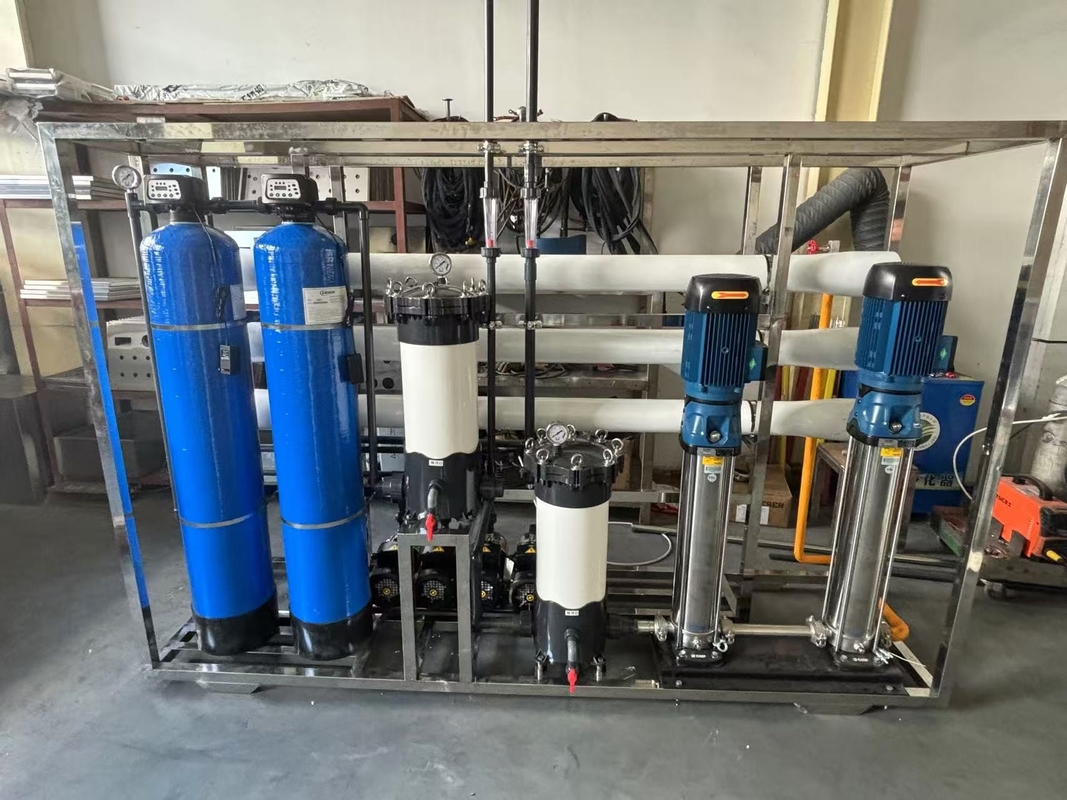

Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment
  • Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment
  • Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment

Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment

Place of Origin Zhengzhou,China
Brand Name HYJB
Model Number 1T/H
Product Details
Materia:
304 Stainless Steel
Power:
2kw
Water Yield:
0.5 Tons/hour
Voltage:
220V/380V
Net Weight:
120kg
Dimensions:
2500*700*1675mm
Fuselage MaterialMaterial:
Stainless Steel
Warranty:
1 Year
Control:
Automatic
Technical:
Separation And Purification
Source Of Water:
Ground Water Or Tap Water
Operating Temperature Operating Pressure:
15℃--35℃
Operating Pressure:
0.15-0.4
Application Scenario:
Electronics, Industrial, Pharmaceutical, Chemical And Laboratory
Highlight:

Energy-Saving Seawater Desalination Equipment

,

220V Seawater Desalination Equipment

,

Efficient Seawater Desalination Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Wooden Case
Delivery Time
7days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 sets per month
Product Description

Water desalination equipment of 1000L per hour





Equipment characteristics

The 1 ton/hour seawater desalination equipment is an efficient water treatment device designed specifically to address the shortage of freshwater resources in coastal areas. This device adopts advanced reverse osmosis technology, which pressurizes seawater through a high-pressure pump, allowing water molecules to pass through the reverse osmosis membrane and impurities such as salt to be intercepted, thereby obtaining fresh water. The device has a compact structure, small footprint, simple operation, and easy maintenance. It is suitable for multiple fields such as islands, ships, fisheries, marine aquaculture, and coastal factories, providing stable and reliable freshwater supply for various users.



Parameter Table





Model
Water Making Ability
Inlet Caliber
Effluent Caliber
Blowdown alCer
Size(mm)
Power
YSRO-0.5T
0.5m3/h
DN20
DN20
DN15
1500×600×1500
1.3kw
YSRO-1T
1m3/h
DN25
DN25
DN20
1700×600×1500
2.1kw
YSRO-2T
2m3/h
DN32
DN25
DN20
2500×1000×1950
4.4kw
YSRO-3T
3m3/h
DN40
DN32
DN25
2500×1200×2150
4.5kw
YSRO-5T
5m3/h
DN50
DN40
DN32
2500×1350×2150
7.0kw
YSRO-8T
8m3/h
DN50
DN50
DN40
3500×1500×2150
11kw
YSRO-10T
10m3/h
DN50
DN50
DN40
3500×1600×2300
15kw



Product Advantage



1. Efficient reverse osmosis technology:
By using high-performance reverse osmosis membranes, the desalination rate can reach over 99%, effectively removing impurities such as salt, organic matter, and bacteria from seawater, ensuring that the effluent quality meets the national drinking water standards.
Reverse osmosis membranes have excellent anti fouling performance and long lifespan, which can operate stably for a long time and reduce maintenance costs.
2. Automation control system:
The equipment is equipped with an advanced automatic control system, which can achieve functions such as automatic start stop, automatic flushing, automatic protection, and automatic alarm, greatly reducing the burden of manual operation.
The control system is intelligent and can automatically adjust operating parameters based on water quality, ensuring stable and reliable effluent quality.
3. Energy conservation and environmental protection:
The equipment adopts energy-saving motors and pumps, as well as efficient membrane components, which reduce energy and water consumption and meet environmental protection requirements.
By recovering energy from concentrated saltwater, the energy utilization efficiency of the equipment has been further improved.



Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 0

Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 1

Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 2

Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 3

Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 4









Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 5

Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 6Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 7

Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 8Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 9



Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 10Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 11Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 12

Packaging and transportation

Efficient And Energy-Saving 1 Ton/Hour Seawater Desalination Equipment 13

FAQ


1.Material of reverse osmosis system?
Support customization, You can choose FRP(fiber glass) filters with U-PVC pipe, stainless steel filters with U-PVC pipe or full stainless steel.

2. What is packing of this machine? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you only need to open wooden case to pick up machine.


3. What is the daily maintenance of water treatment equipment?

Periodically check the running status of each component of the device. Clean and replace filter elements, membrane components and other consumable products. Keep the area around equipment clean and dry. Record device running data to discover and solve problems in time.

4. How to extend the service life of water treatment equipment?
Choose high quality equipment and accessories. Operate and maintain the equipment in strict accordance with the manual. Regular professional maintenance and maintenance services. Avoid equipment overload for a long time.

5.How can I pay you?
After we confirmed order, I will send you sales contract with our company bank information. You can transfer money to our company bank account by T/T. Or you can pay via Western Union with credit card, Smartcard or Visa Card.Or do L/C if it is accepted by both of us .
If you still don't know how to pay, just call me at+86 18203685329(whatsapp no.)
