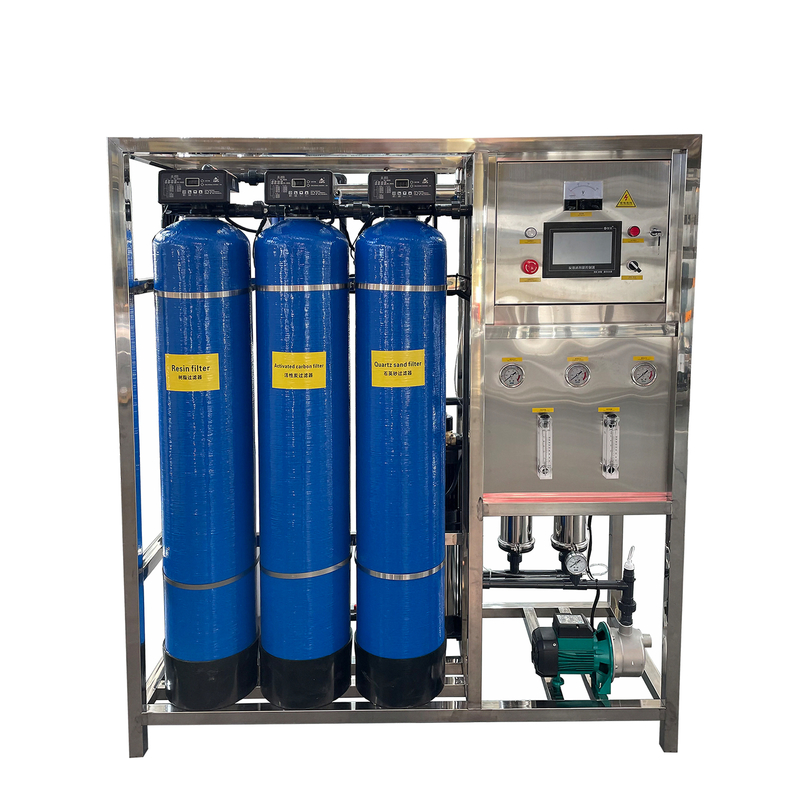

500L/H single stage reverse osmosis (RO) water treatment equipment
Core functions and configurations
Reverse osmosis (RO) technology
RO membrane filtration: The use of high desalting rate reverse osmosis membrane, remove more than 99% of dissolved salts, organic matter, heavy metals, bacteria and microorganisms in water.
Ultraviolet (UV) sterilization device
Double sterilization guarantee: Add UV sterilization module after RO membrane filtration, destroy microbial DNA through 254nm ultraviolet light, kill residual bacteria and viruses, and ensure the biosafety of water quality.
No chemical addition: avoid secondary pollution, environmental protection and safety.
Smart touch control screen
Man-machine interface: Full-color touch screen real-time display of water quality conductivity, flow, pressure, UV intensity and other key parameters.
Automatic control: Support one-key start-stop, automatic flushing, fault alarm (such as low/high voltage alarm, UV lamp fault reminder)
Parameter Table
|
Model
|
Water Making Ability
|
Inlet Caliber
|
Effluent Caliber
|
Blowdown alCer
|
Size(mm)
|
Power
|
|
YSRO-0.5T
|
0.5m3/h
|
DN20
|
DN20
|
DN15
|
1500×600×1500
|
1.3kw
|
|
YSRO-1T
|
1m3/h
|
DN25
|
DN25
|
DN20
|
1700×600×1500
|
2.1kw
|
|
YSRO-2T
|
2m3/h
|
DN32
|
DN25
|
DN20
|
2500×1000×1950
|
4.4kw
|
|
YSRO-3T
|
3m3/h
|
DN40
|
DN32
|
DN25
|
2500×1200×2150
|
4.5kw
|
|
YSRO-5T
|
5m3/h
|
DN50
|
DN40
|
DN32
|
2500×1350×2150
|
7.0kw
|
|
YSRO-8T
|
8m3/h
|
DN50
|
DN50
|
DN40
|
3500×1500×2150
|
11kw
|
|
YSRO-10T
|
10m3/h
|
DN50
|
DN50
|
DN40
|
3500×1600×2300
|
15kw
|
Packaging and transportation
FAQ
1.Material of reverse osmosis system?
Support customization, You can choose FRP(fiber glass) filters with U-PVC pipe, stainless steel filters with U-PVC pipe or full stainless steel.
2. What is packing of this machine? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you only need to open wooden case to pick up machine.
3. What is the daily maintenance of water treatment equipment?
Periodically check the running status of each component of the device. Clean and replace filter elements, membrane components and other consumable products. Keep the area around equipment clean and dry. Record device running data to discover and solve problems in time.
4. How to extend the service life of water treatment equipment?
Choose high quality equipment and accessories. Operate and maintain the equipment in strict accordance with the manual. Regular professional maintenance and maintenance services. Avoid equipment overload for a long time.
5.How can I pay you?
After we confirmed order, I will send you sales contract with our company bank information. You can transfer money to our company bank account by T/T. Or you can pay via Western Union with credit card, Smartcard or Visa Card.Or do L/C if it is accepted by both of us .
If you still don't know how to pay, just call me at+86 18203685329(whatsapp no.)
