Self Service Water Vending Machine Community Direct Drinking Water Station

Self Service Water Vending Machine Community Direct Drinking Water Station

Working principle

1. Water production principle: Fully automatic water dispensers generally use multi-stage filtration and reverse osmosis technology to produce pure water. The tap water is first treated with a filter element to remove large impurities, sediment, rust, etc; Then enter the activated carbon filter to adsorb residual chlorine, odors, and some organic matter in the water; Then, through reverse osmosis membranes, harmful substances such as bacteria, viruses, heavy metal ions, etc. in the water are intercepted. Only water molecules and a small amount of minerals can pass through, thus obtaining high-quality purified water.
2. Water selling principle: Users input instructions to purchase water quantity to the water vending machine control system through coin insertion, card swiping, or mobile payment. After receiving the signal, the control system drives the corresponding valves and pumps to deliver the treated water to the outlet faucet for users to pick up.

Main structure

1. Waterway system: including inlet pipes, pre-treatment filter cartridges, reverse osmosis membrane components, water storage tanks, outlet faucets, etc., responsible for water filtration, purification, and transportation.
2. Circuit system: including controller, power module, sensors, etc., used to control the operation of the entire water vending machine, monitor parameters such as water level and quality, and realize functions such as billing and payment.
3. Shell: Usually made of stainless steel or plastic material, it plays a role in protecting internal components, preventing external pollution, and beautifying the appearance.

Specifications

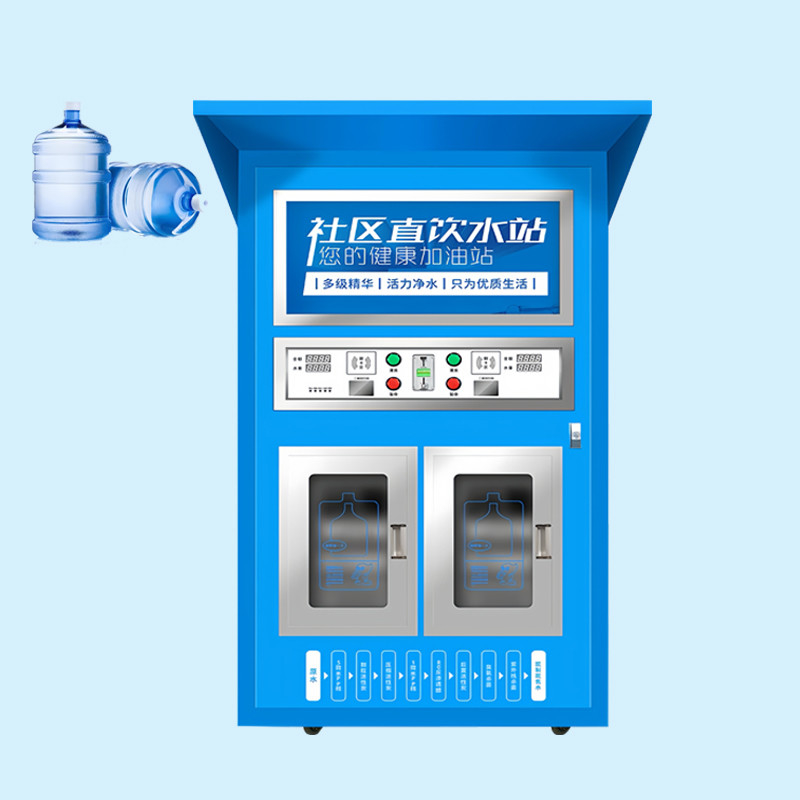

Product Pictures:
