Production Description

0.5 tonne ultrafiltration equipment is a kind of high-efficiency water treatment equipment, which is widely used in the fields of drinking mineral water, spring water, industrial ultrafiltration water, etc. It can also be used as the pre-treatment of pure water equipment. It takes pressure as driving force, and uses different pore sizes of ultrafiltration membrane to separate impurities in the liquid, so as to get purified water. The equipment has the advantages of small footprint, high degree of automation, stable water quality and so on.

Performance Parameters

Model: Different models according to manufacturers.
Treatment capacity: 0.5 tonnes/hour (i.e. 500L/h), suitable for small and medium scale water treatment needs.
Filtration precision: usually between 0.002~0.1μm, can effectively filter out bacteria, colloid, suspended matter, protein and other macromolecular substances in solution.
Working pressure: according to the different design and material of the equipment, the working pressure will be different, but generally not more than 0.45MPa.
Working temperature: generally between 10℃~45℃, too high or too low temperature may affect the operating efficiency of the equipment and the service life of the membrane.
Power supply: it needs to be energised for operation, the specific power depends on the equipment model and configuration.
Water inlet calibre: generally standard size, such as 40mm, etc., easy to connect with the pipeline.
Water outlet: mostly direct drinking or pipeline output to meet different water needs.

Installation and maintenace

Appearance check: Regularly check whether the appearance of the equipment is intact and undamaged, with no obvious damage or deformation.
Internal cleaning: Regularly clean the inside of the equipment to remove accumulated pollutants and bacteria. You can use ultrafiltration through the liquid or pure water with additives for cleaning, cleaning time and frequency according to the use of equipment and manufacturer's recommendations.
Piping and Valve Inspection: Regularly inspect the piping and valves of the equipment to see if they are working properly, as well as checking that the power and water sources of the equipment are properly connected and supplied.

Pressure monitoring: Real-time monitoring of the inlet and outlet pressure and flow rate of the equipment to ensure that the equipment operates within the normal pressure difference. If the pressure is abnormal, timely measures need to be taken to deal with it.
Water quality monitoring: Regularly test the water quality of the effluent to ensure that the water quality meets the relevant standards and requirements. If the water quality does not meet the standards, you need to analyse the reasons and take appropriate measures to deal with it.
Regular maintenance: according to the use of equipment and manufacturer's recommendations, regular maintenance and repair of equipment. This includes replacing aging parts, checking electrical connections, etc.

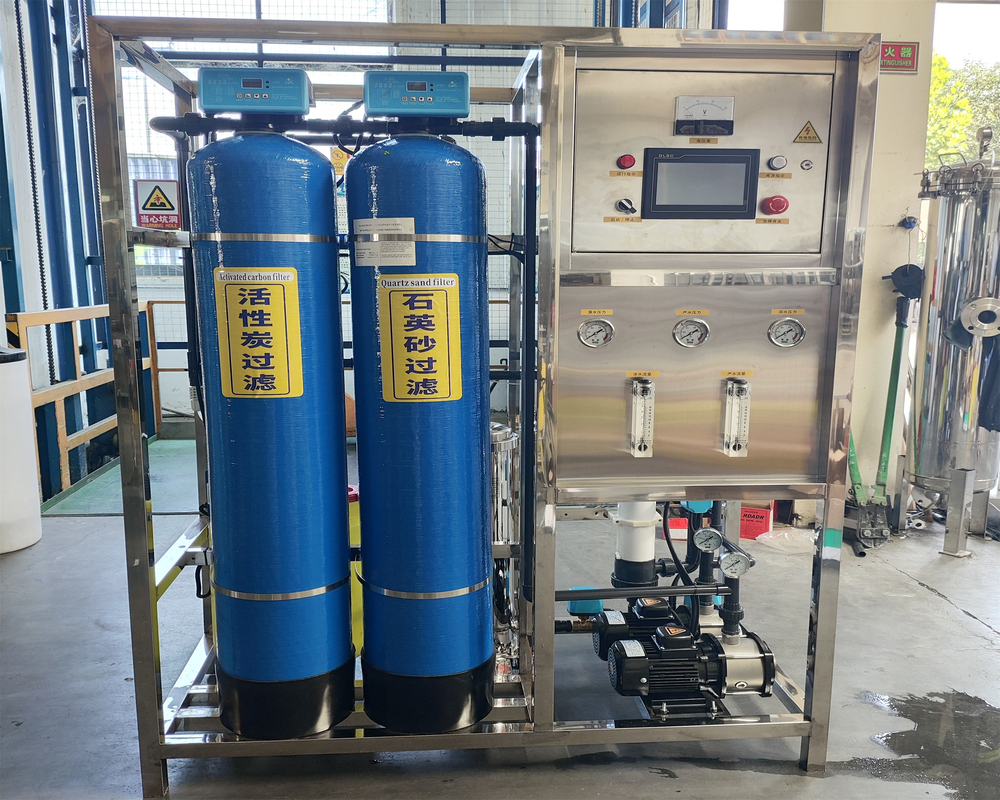

Product  Display
