Intelligent Control Of Two Tons Of Ultrafiltration Equipment Real-Time Monitoring
  • Intelligent Control Of Two Tons Of Ultrafiltration Equipment Real-Time Monitoring

Intelligent Control Of Two Tons Of Ultrafiltration Equipment Real-Time Monitoring

Place of Origin Zhengzhou,China
Brand Name HYJB
Model Number 2T
Product Details
Service:
Customized
Material Of Tanks:
PVC
Size:
1500*600*1700mm
Key Words:
Ultrafiltration
Condition:
New
Core Component:
Pump
Highlight:

Real-Time Monitoring Ultrafiltration Equipment

,

Two Tons Ultrafiltration Equipment

,

Intelligent Control Ultrafiltration Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
wooden case
Delivery Time
7 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10 pieces/month
Product Description

Intelligent Control Of Two Tons Of Ultrafiltration Equipment Real-Time Monitoring



Product Description:

2000L ultrafiltration product is an efficient water treatment equipment, through ultrafiltration membrane technology, can efficiently remove bacteria, viruses, colloids, suspended solids and other macromolecular impurities in water, while retaining minerals and trace elements that are beneficial to the human body. These products are widely used in home, industry, medical and other fields to provide users with safe, healthy and clear water.



Parameter Table:



mode
Effluent flow
Water inlet via
Outlet diameter
Discharge diameter
Equipment size (length × wide × High) mm
power
SCRO-0.5T
0.5m3/h
DN20
DN20
DN15
1700×600×1500
1.8kw
SCRO-1T
1m3/h
DN25
DN25
DN20
2500×1000×1500
3.5kw
SCRO-2T
2m3/h
DN32
DN25
DN20
2500×1200×1500
7.0kw
SCRO-3T
3m3/h
DN40
DN32
DN25
2500×1200×2150
7.5kw
SCRO-5T
5m3/h
DN50
DN40
DN32
3500×1500×2150
12.0kw
SCRO-8T
8m3/h
DN50
DN50
DN40
4500×1500×2150
18.0kw
SCRO-10T
10m3/h
DN50
DN50
DN40
5500×1600×2300
25.0kw



Key Advantages:



Efficient filtration: The use of advanced ultrafiltration membrane technology, filtration accuracy of up to 0.01 micron, can effectively remove impurities and pollutants in the water, to ensure the quality of effluent water.

Mineral retention: At the same time of filtration, it can retain the minerals and trace elements in the water, so that the water tastes better and is beneficial to human health.

Energy saving and environmental protection: Such products usually do not require electricity, and the utilization rate of water is high, which meets the requirements of energy saving and environmental protection.

Simple operation: The equipment is compact, easy to install and operate, and users can use and maintain it at any time according to their needs.

Economical and practical: long service life of filter element, long replacement cycle, reducing the maintenance cost of users.



Maintance:



Check the equipment regularly for leaks, normal flow, and smooth operation.

Observe gauges, flowmeters and other indicators of the equipment to ensure that they are working within the normal range.

Clean the surface of the device regularly to remove dirt and dust to avoid affecting the heat dissipation and normal operation of the device.

When cleaning, use a soft cloth or sponge and avoid using hard objects or corrosive cleaners.





Picture:

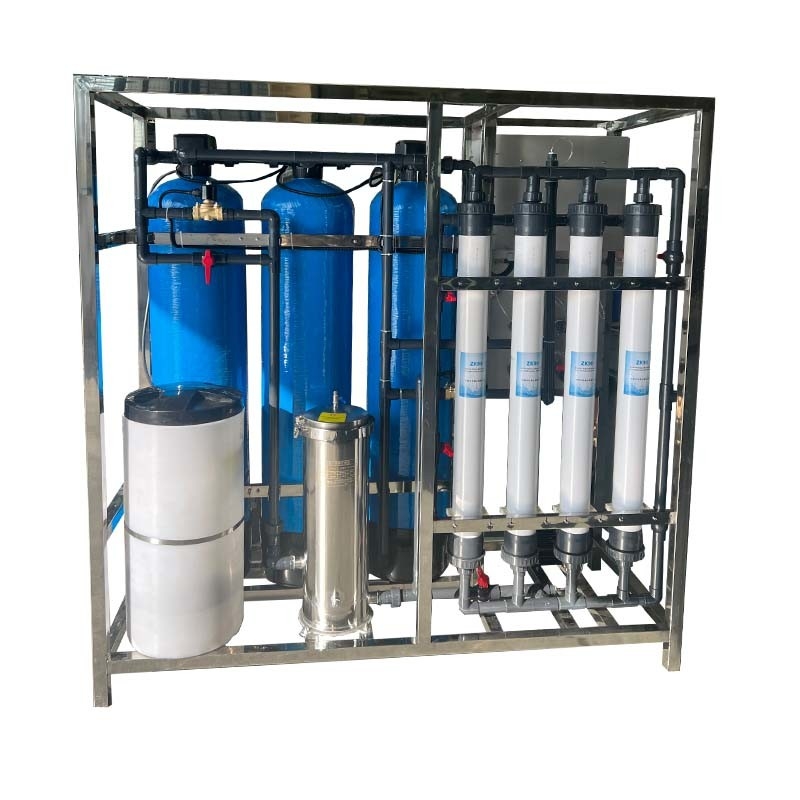

Intelligent Control Of Two Tons Of Ultrafiltration Equipment Real-Time Monitoring 0Intelligent Control Of Two Tons Of Ultrafiltration Equipment Real-Time Monitoring 1Intelligent Control Of Two Tons Of Ultrafiltration Equipment Real-Time Monitoring 2
