Efficient EDI Technology Creates Superior Ultrapure Water System For Manufacturer
Working principle:
EDI ultra-pure water system works by combining electrodialysis technology and ion exchange technology. Under the action of direct current electric field, the water dielectric ions move directionally through the separator. Between a pair of electrodes of an electrodialyzer, a negative film, a positive film and a separator (A, B) are usually arranged alternately to form a concentration chamber and a light chamber. The cation in the light chamber water migrates to the negative electrode through the positive film and is trapped by the negative film in the strong chamber.
Parameter Table:
Model | Water Making Ability |
Inlet Caliber(mm) |
Effluent Caliber(mm) |
Blowdown Caliber(mm) |
Size(mm) | Power(KW) |
EDI-2-PVC-0.25T | 250L/H | 25 | 25 | 25 | 1700*800*1700 | 3 |
EDI-3-PVC-0.25T | 250L/H | 25 | 25 | 25 | 2000*800*1700 | 3 |
EDI-2-304-0.25T | 250L/H | 25 | 25 | 25 | 2200*650*1750 | 3 |
EDI-3-304-0.25T | 250L/H | 25 | 25 | 25 | 2500*650*1750 | 3 |
EDI-2-PVC-0.5T | 500L/H | 32 | 25 | 25 | 1700*800*1700 | 3.7 |
EDI-3-PVC-0.5T | 500L/H | 32 | 25 | 25 | 2000*800*1700 | 3.7 |
EDI-2-304-0.5T | 500L/H | 32 | 25 | 25 | 2300*700*1750 | 3.7 |
EDI-3-304-0.5T | 500L/H | 32 | 25 | 25 | 2600*700*1750 | 3.7 |
EDI-2-PVC-1T | 1000L/H | 32 | 32 | 32 | 2500*750*1950 | 4.6 |
EDI-3-PVC-1T | 1000L/H | 32 | 32 | 32 | 3000*750*1950 | 4.6 |
EDI-2-304-1T | 1000L/H | 32 | 32 | 32 | 3000*750*1950 | 4.6 |
EDI-3-304-1T | 1000L/H | 32 | 32 | 32 | 3500*750*1950 | 4.6 |
EDI-PVC-0.25T | 250L/H | 25 | 25 | 25 | 800*600*1500 | 0.37 |
EDI-304-0.25T | 250L/H | 25 | 25 | 25 | 800*600*1500 | 0.37 |
EDI-PVC-0.5T | 500L/H | 25 | 25 | 25 | 800*600*1500 | 0.55 |
EDI-304-0.5T | 500L/H | 25 | 25 | 25 | 800*600*1500 | 0.55 |
EDI-PVC-1T | 1000L/H | 32 | 32 | 32 | 800*600*1500 | 0.55 |
EDI-304-1T | 1000L/H | 32 | 32 | 32 | 800*600*1500 | 0.55 |
EDI-PVC-2T | 2000L/H | 32 | 32 | 32 | 1000*600*1500 | 0.75 |
EDI-304-2T | 2000L/H | 32 | 32 | 32 | 1000*600*1500 | 0.75 |
Description:EDI ultrapure water equipment is a two-stage reverse osmosis equipment + EDI equipment, generally 0.25-1 tons can be made into a one-piece machine, can also be made into a component level, 2 tons and above are made into a component machine |
Key Advantages:
High efficiency and energy saving: EDI ultra-pure water system combines the advantages of electrodialysis and ion exchange technology to achieve efficient removal of ions in water, making the preparation efficiency of ultra-pure water greatly improved.
Environmental protection: Compared with traditional ion exchange technology, EDI does not need acid and base regeneration, eliminating the handling of harmful substances and heavy work, protecting the environment.
Maintance:
Reverse osmosis host: Check whether the equipment has automatic flushing function, and wash the reverse osmosis membrane regularly, pay attention to the pressure is not too high.
EDI device: Ensure that EDI device does not run without water, to avoid burning and other dangers. Regular inspection of every component in the ultrapure water equipment, timely replacement of damaged parts. Check regularly every day whether the power cord is soft or high temperature leakage to prevent accidents. Wipe and clean the equipment at least once a month to keep it dry.

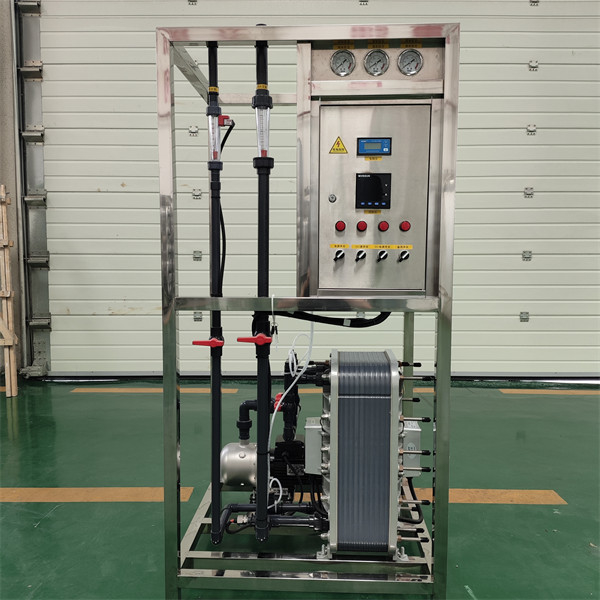

Picture:
