Professional Industrial Ro Membrane For Sewage Treatment Replacement

4040 sewage treatment RO reverse osmosis membranes for the industries

Production Description

4040 reverse osmosis membrane water treatment equipment mainly through the reverse osmosis technology, the use of high pressure will be dissolved solids in the water (such as salts, minerals, organic matter, etc.) and water molecules separation, so as to achieve the purpose of purifying water quality. This equipment has the advantages of good water quality, stable operation and convenient maintenance.

Main components

Reverse osmosis membrane module: the core component is 4040 specification reverse osmosis membrane, which has specific pore size and molecular weight retention, and can effectively remove impurities in water.

High-pressure pump: provides the high-pressure power required for the reverse osmosis process to ensure that water molecules can pass through the reverse osmosis membrane smoothly.
Pre-treatment system: including sand filter, carbon filter, etc., used to remove suspended solids, organic matter and other impurities in water, to protect the reverse osmosis membrane from contamination.

Control system: realize the automatic operation and monitoring of the equipment, including real-time monitoring and adjustment of pressure, flow, water quality and other parameters.
Water storage tank and post-treatment system: the water storage tank is used to store the purified water, and the post-treatment system can further improve the water quality, such as adding minerals and adjusting pH value.

Maintanace

Inspect the pretreatment system:
Regularly inspect and replace the filter media in the pretreatment system (e.g., sand filters, activated carbon filters, etc.) to ensure the effectiveness of pretreatment and to reduce the amount of contaminants entering the reverse osmosis membrane.
Monitor the quality of incoming water, including parameters such as pH, hardness, turbidity, etc., to avoid exceeding the tolerance range of the membrane elements.


Inspect the membrane module:
Observe the operating status of the membrane module and note any leakage, blockage or contamination.
Regularly check the sealing performance of the membrane element to prevent leakage and ensure normal operation of the system.


Monitor operating parameters:
Monitor the operating parameters of the system in real time, such as pressure, flow rate, temperature, etc., to ensure that the system operates in the best condition.
When the system is found to be running abnormally, it should be shut down immediately for inspection, to find out the problems and take measures to solve them.

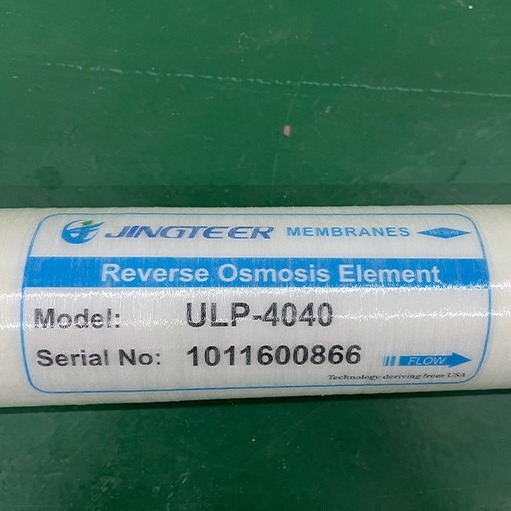

Product  Display
