Place of Origin | Zhengzhou ,China |
Brand Name | HYJB |
Model Number | 1 ton |
RO EDI Water Filtration System for Medical Hospitals 300kg 1500*600*1500mm Filtration
Production Description
Pure water production using EDI module and membrane separation technology combined, these two technologies in the operation of the equipment to enter the water quality also has the corresponding requirements. Membrane element has microporous characteristics, if the water quality into the reverse osmosis device large particles of impurities more, will directly lead to membrane element blockage, affecting the operation of the whole set of equipment.EDI module belongs to the current ultrapure water production and extraction device in the most core technology, it is by way of electric deionization of water purification, if the module is contaminated material buildup, not only affects the normal operation of the ion exchange process, and directly destroy the EDI module. EDI module is the most advanced technology in the current ultrapure water extraction, so the price is more expensive than other accessories, if the raw water is not pre-treated, it will shorten the service life of the equipment, and bring economic burden to the user.
Parameter Table
Model | Water Making Ability |
Inlet Caliber(mm) |
Effluent Caliber(mm) |
Blowdown Caliber(mm) |
Size(mm) | Power(KW) |
EDI-2-PVC-0.25T | 250L/H | 25 | 25 | 25 | 1700*800*1700 | 3 |
EDI-3-PVC-0.25T | 250L/H | 25 | 25 | 25 | 2000*800*1700 | 3 |
EDI-2-304-0.25T | 250L/H | 25 | 25 | 25 | 2200*650*1750 | 3 |
EDI-3-304-0.25T | 250L/H | 25 | 25 | 25 | 2500*650*1750 | 3 |
EDI-2-PVC-0.5T | 500L/H | 32 | 25 | 25 | 1700*800*1700 | 3.7 |
EDI-3-PVC-0.5T | 500L/H | 32 | 25 | 25 | 2000*800*1700 | 3.7 |
EDI-2-304-0.5T | 500L/H | 32 | 25 | 25 | 2300*700*1750 | 3.7 |
EDI-3-304-0.5T | 500L/H | 32 | 25 | 25 | 2600*700*1750 | 3.7 |
EDI-2-PVC-1T | 1000L/H | 32 | 32 | 32 | 2500*750*1950 | 4.6 |
EDI-3-PVC-1T | 1000L/H | 32 | 32 | 32 | 3000*750*1950 | 4.6 |
EDI-2-304-1T | 1000L/H | 32 | 32 | 32 | 3000*750*1950 | 4.6 |
EDI-3-304-1T | 1000L/H | 32 | 32 | 32 | 3500*750*1950 | 4.6 |
EDI-PVC-0.25T | 250L/H | 25 | 25 | 25 | 800*600*1500 | 0.37 |
EDI-304-0.25T | 250L/H | 25 | 25 | 25 | 800*600*1500 | 0.37 |
EDI-PVC-0.5T | 500L/H | 25 | 25 | 25 | 800*600*1500 | 0.55 |
EDI-304-0.5T | 500L/H | 25 | 25 | 25 | 800*600*1500 | 0.55 |
EDI-PVC-1T | 1000L/H | 32 | 32 | 32 | 800*600*1500 | 0.55 |
EDI-304-1T | 1000L/H | 32 | 32 | 32 | 800*600*1500 | 0.55 |
EDI-PVC-2T | 2000L/H | 32 | 32 | 32 | 1000*600*1500 | 0.75 |
EDI-304-2T | 2000L/H | 32 | 32 | 32 | 1000*600*1500 | 0.75 |
Description:EDI ultrapure water equipment is a two-stage reverse osmosis equipment + EDI equipment, generally 0.25-1 tons can be made into a one-piece machine, can also be made into a component level, 2 tons and above are made into a component machine |
Equipment Advantage
1,Small footprint, omitting the mixed bed and regeneration device
2,Water production is continuous and stable, high water quality, while the mixed bed in the resin near the failure of the water quality will deteriorate.
EDI ultrapure water device is a continuous water purification process, so its product water quality is stable, resistivity is generally 15MΩ-cm, up to 18MΩ-cm, to achieve ultrapure water indicators. Mixed-bed ion exchange facility water purification process is intermittent, just after being regenerated, its product water quality is higher, and before the next regeneration, its product water quality is poor.
3,Low running cost, regeneration only consumes electricity, no acid and alkali, saving material cost.
Overall, in the running costs, conventional mixed bed tons of water running costs higher than the EDI ultrapure water device. Therefore, EDI ultrapure water device more investment costs in a few years can be fully recovered.
4, significant environmental benefits, increased operational security
EDI technology is environmentally friendly technology, ion exchange resin does not require acid, alkali chemical regeneration, saving a lot of acid, alkali and cleaning water, greatly reducing labor intensity. What's more, there is no waste acid and alkali discharge, which belongs to non-chemical water treatment system, and it does not need acid and alkali storage, treatment and no waste water discharge, thus it is particularly attractive to new users.

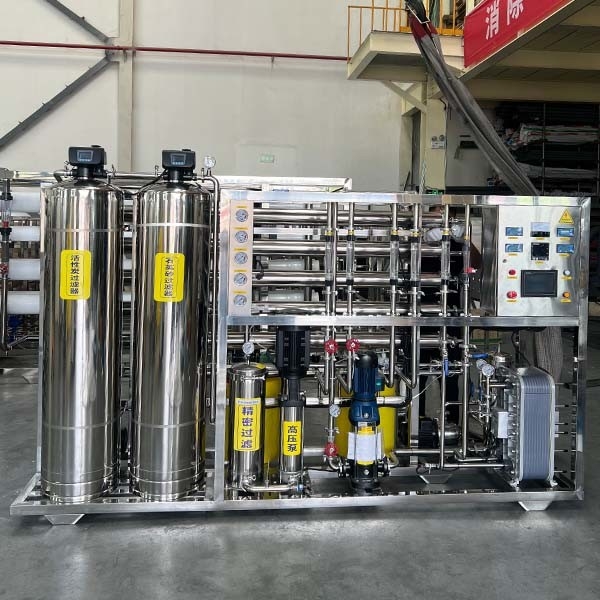

Product Display
